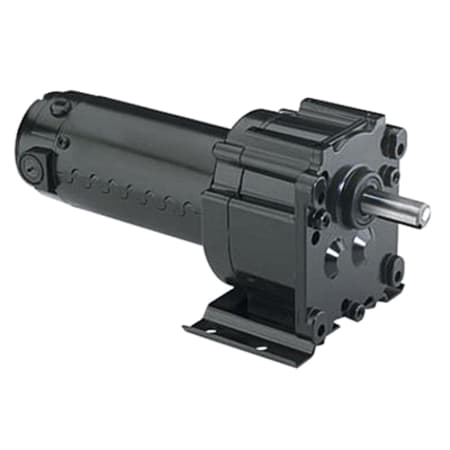

Leeson P300 DC Motor, 1/20 HP, 34 rpm, 30E Frame, TENV, MFR ID M1115027
EIS #:MOTM1115027
UPC #:00069172009071
EIS #:MOTM1115027
UPC #:00069172009071
Available to Order
Min Qty:1
|Qty Increment:1
Leeson Totally Enclosed Non-Ventilated Enclosure DC Motor
Leeson Totally Enclosed Non-Ventilated Enclosure DC Motor. NEMA DC, explosion proof, SUB-FHP, wash-down, IEC and low voltage motors available, Dynamically balanced armatures, 30:1 constant torque operation, Permanent magnet designs, PWM or SCR rated and low voltage input voltage designs
$1,133.22 / each
Min Qty:1
|Qty Increment:1
Leeson Totally Enclosed Non-Ventilated Enclosure DC Motor
Leeson Totally Enclosed Non-Ventilated Enclosure DC Motor. NEMA DC, explosion proof, SUB-FHP, wash-down, IEC and low voltage motors available, Dynamically balanced armatures, 30:1 constant torque operation, Permanent magnet designs, PWM or SCR rated and low voltage input voltage designs
- Attributes
- Features
Attributes
General Information
Item NameDC Motor
Trade NameLeeson
General Features
Type30E, Parallel Shaft, SCR Rated
Design & Construction
Enclosure TypeTotally Enclosed Non-Ventilated
Shaft PositionHorizontal
Performance Details
Speed Rating34 rpm
Torque Rating27 lb-Inch
Electrical Properties
Armature Voltage90 VDC
Full Load Ampere0.54 A
HP Rating0.05 HP
Service Factor1
Physical Properties
Dimensions10.07 Inch L
Frame Size30
Shaft Diameter0.625 Inch
Shaft Length1.5 Inch
Features
- NEMA DC, explosion proof, SUB-FHP, wash-down, IEC and low voltage motors available
- Dynamically balanced armatures
- 30:1 constant torque operation
- Permanent magnet designs
- PWM or SCR rated and low voltage input voltage designs
- Removable bolt-on base
- Oversized brushes for long brush life
- Easy access to brushes
- Constant torque throughout speed range
- DC Controls available to change the speed of the motors
- High starting torque
