SKF NU2 Series Single Row Cylindrical Roller Bearing, 30 mm Bore x 62 mm OD x 16 mm W, Fiberglass Reinforced Polyamide Cage, MFR ID NU 206 ECP/C3

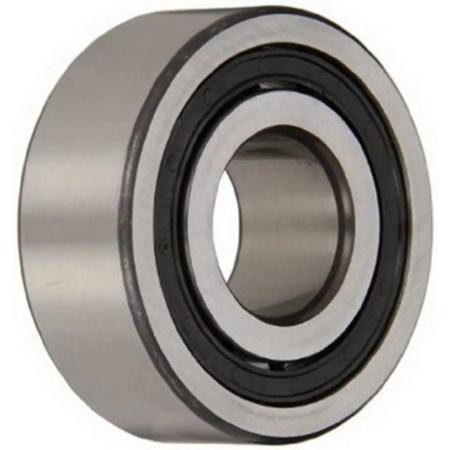

The image shown is representative of the product family and may not specifically be the individual item.
  • MFR #:NU 206 ECP/C3
  • EIS #:NU206ECP04
  • Series #:nu206
  • UPC #:07316577061737
  • MFR #:NU 206 ECP/C3
  • EIS #:NU206ECP04
  • Series #:nu206
  • UPC #:07316577061737
In Stock | Ready to Ship

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
SKF NU2 Series cylindrical roller bearings are available in many designs, series and sizes. The majority are single row bearings with a cage. High-capacity bearings, double row bearings, multi-row bearings, single, double and multi-row full complement bearings (without a cage) and split bearings complete the SKF standard assortment provided with a cage can accommodate heavy radial loads, rapid accelerations and high speeds. Full complement bearings incorporate a maximum number of rollers and are therefore suitable for very heavy radial loads at moderate speeds. SKF high-capacity cylindrical roller bearings combine the high load carrying capacity of a full complement bearing with the high speed capability of a bearing with a cage. - SKF NU2 Series single row cylindrical roller bearing.
$108.97 / Piece

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
SKF NU2 Series cylindrical roller bearings are available in many designs, series and sizes. The majority are single row bearings with a cage. High-capacity bearings, double row bearings, multi-row bearings, single, double and multi-row full complement bearings (without a cage) and split bearings complete the SKF standard assortment provided with a cage can accommodate heavy radial loads, rapid accelerations and high speeds. Full complement bearings incorporate a maximum number of rollers and are therefore suitable for very heavy radial loads at moderate speeds. SKF high-capacity cylindrical roller bearings combine the high load carrying capacity of a full complement bearing with the high speed capability of a bearing with a cage. - SKF NU2 Series single row cylindrical roller bearing.

Attributes

General Information

Item NameCylindrical roller bearing

Seriesnu206

General Features

TypeStandard Cage
Net Weight0.199kg

Design & Construction

Cage MaterialFiberglass Reinforced Polyamide

Performance Details

Dynamic Load Capacity44000 N
Static Load Capacity36500 N
Tolerance ClassRBEC 1 (Normal), RBEC 3 (P6)

Physical Properties

Bore Diameter30 mm
Fillet Radius1 mm
Inner Ring Outside Diameter37.5 mm
Number of Rows1
Outer Ring Inside Diameter51.9 mm
Outside Diameter62 mm
Radial Internal Clearance3 mm
Width16 mm
