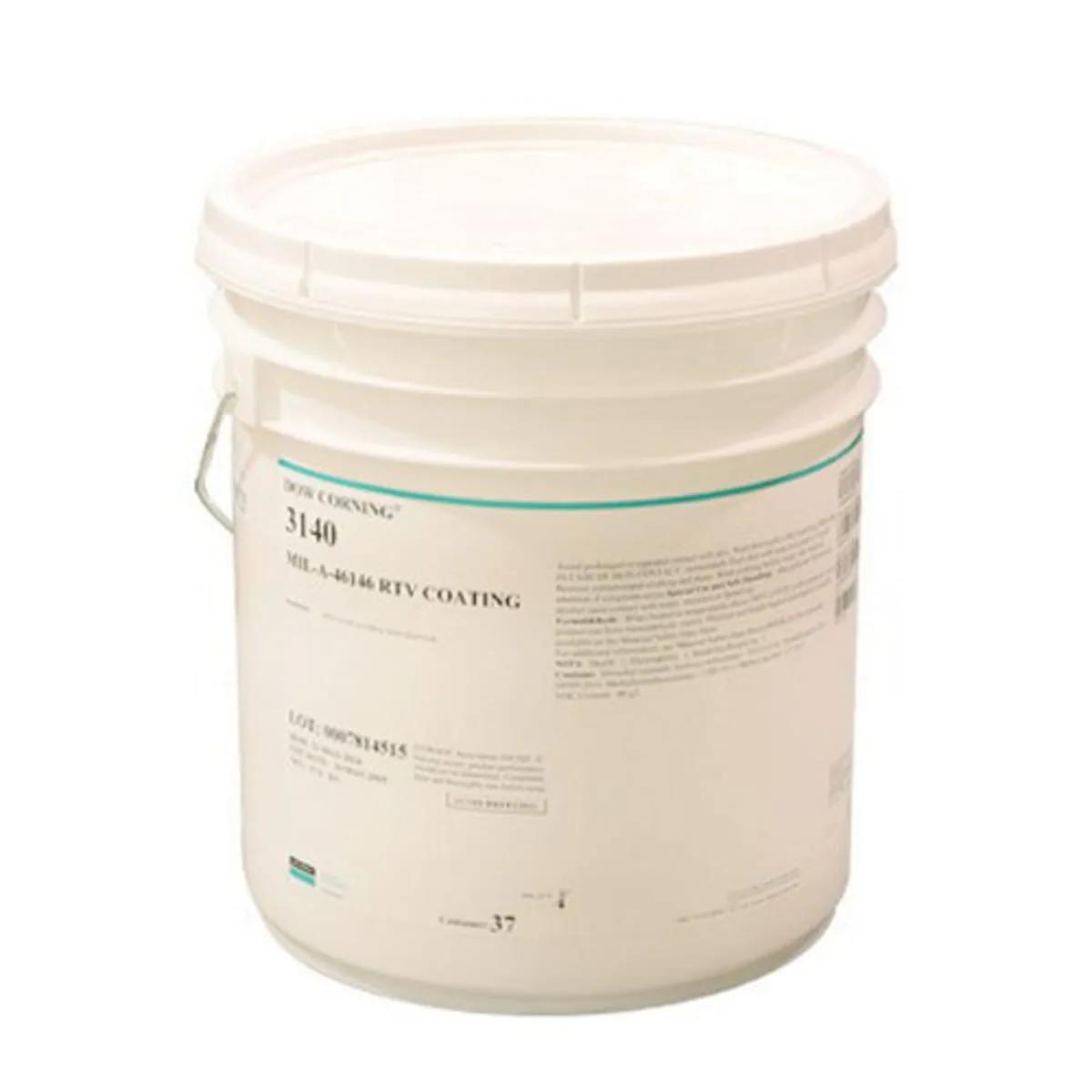

Dow 3140 Curable Coating
- MFR #3140
- EIS #PH11-3140
- Series #3140
$70.08 - $295.04
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--| Stock Status | ||||
|---|---|---|---|---|
 | 93mL | Tube | $ / TUBE |
Dow Corning 3140 Curable coating. Good flowability. Room temperature cure. No added solvents. No mixing required. Room temperature cure, no ovens required. Faster in-line processing with optional heat acceleration. - Can be considered for uses requiring added flame resistance, IPC or Mil-spec testing. UV indicator for manual and automated inspection.
Applications
- For Protection of Corrosion-Sensitive Components, Protection of Rigid and Flexible Circuit Boards, Improved Pin/Solder Joint Coverage, Thin-Section Encapsulation, Pin Sealing
General Information
| Item Name | Curable Coating |
| Series | 3140 |
General Features
| Shelf Life | 12 Months |
| Standards | IPC-CC-830, MIL-A-46146 Certified |
| Storage Temperature | 90 °F |
| Type | One-Part |
Design & Construction
| Color | Translucent White |
| Cure Type | RTV |
| Form | Liquid |
Chemical Properties
| Composition | Polydimethyl Siloxane |
| Specific Gravity | 1.05 |
| Viscosity | 300 P |
Physical Properties
| Hardness | 31.6 Shore A |
| Odor/Scent | Slight |
Documents
No Documents Found
