Leeson 175566 Coupler Brake, 1 HP at 1752 rpm, 115/208 - 230V, 3 lb/ft

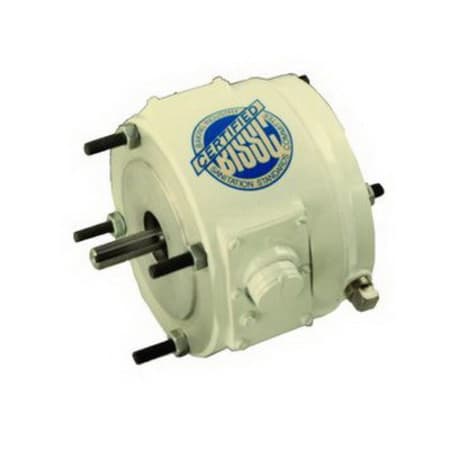

The image shown is representative of the product family and may not specifically be the individual item. A new and expanded line of Coupler Brakes designed for applications where mounting the brake between the motor and driven load is the preferred, o…
  • EIS #:MOT175566
  • EIS #:MOT175566
Available to Order

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
A new and expanded line of Coupler Brakes designed for applications where mounting the brake between the motor and driven load is the preferred, or most convenient, location. They are an excellent problem solver for applications where a brake needs to be added to existing equipment – without replacing the motor. NEMA 2 brakes are best suited for use with standard ODP and TEFC motors. NEMA 4X brakes are designed for use with LEESON WASHGUARD motors. - Rugged cast aluminum or cast iron construction Stearns brakes are well suited to most industrial applications. Coupler brakes are designed to be C-face connected on both ends - these brakes are not suited for overhung loads to be applied to the output shaft. A wide range of voltages and brake torque ratings in both NEMA 2 and NEMA 4X enclosures are available from stock.
$1,721.05 / Piece

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
A new and expanded line of Coupler Brakes designed for applications where mounting the brake between the motor and driven load is the preferred, or most convenient, location. They are an excellent problem solver for applications where a brake needs to be added to existing equipment – without replacing the motor. NEMA 2 brakes are best suited for use with standard ODP and TEFC motors. NEMA 4X brakes are designed for use with LEESON WASHGUARD motors. - Rugged cast aluminum or cast iron construction Stearns brakes are well suited to most industrial applications. Coupler brakes are designed to be C-face connected on both ends - these brakes are not suited for overhung loads to be applied to the output shaft. A wide range of voltages and brake torque ratings in both NEMA 2 and NEMA 4X enclosures are available from stock.

Attributes

General Information

Item NameCoupler Brake
Trade NameWashguard®

SeriesLeeson-Coupler-Brake

General Features

Net Weight13 lb
StandardsBISSC Certified, NEMA 4X

Design & Construction

MaterialSolid Die Cast Aluminum

Performance Details

Brake Rating3 lb/ft

Electrical Properties

HP Rating1 HP
Voltage Rating115 V

Physical Properties

Shaft Diameter0.625 Inch

Supporting Information

IncludesAll Mounting Components
Use WithBoth 1 and 3-Phase 56C Frame Motors
