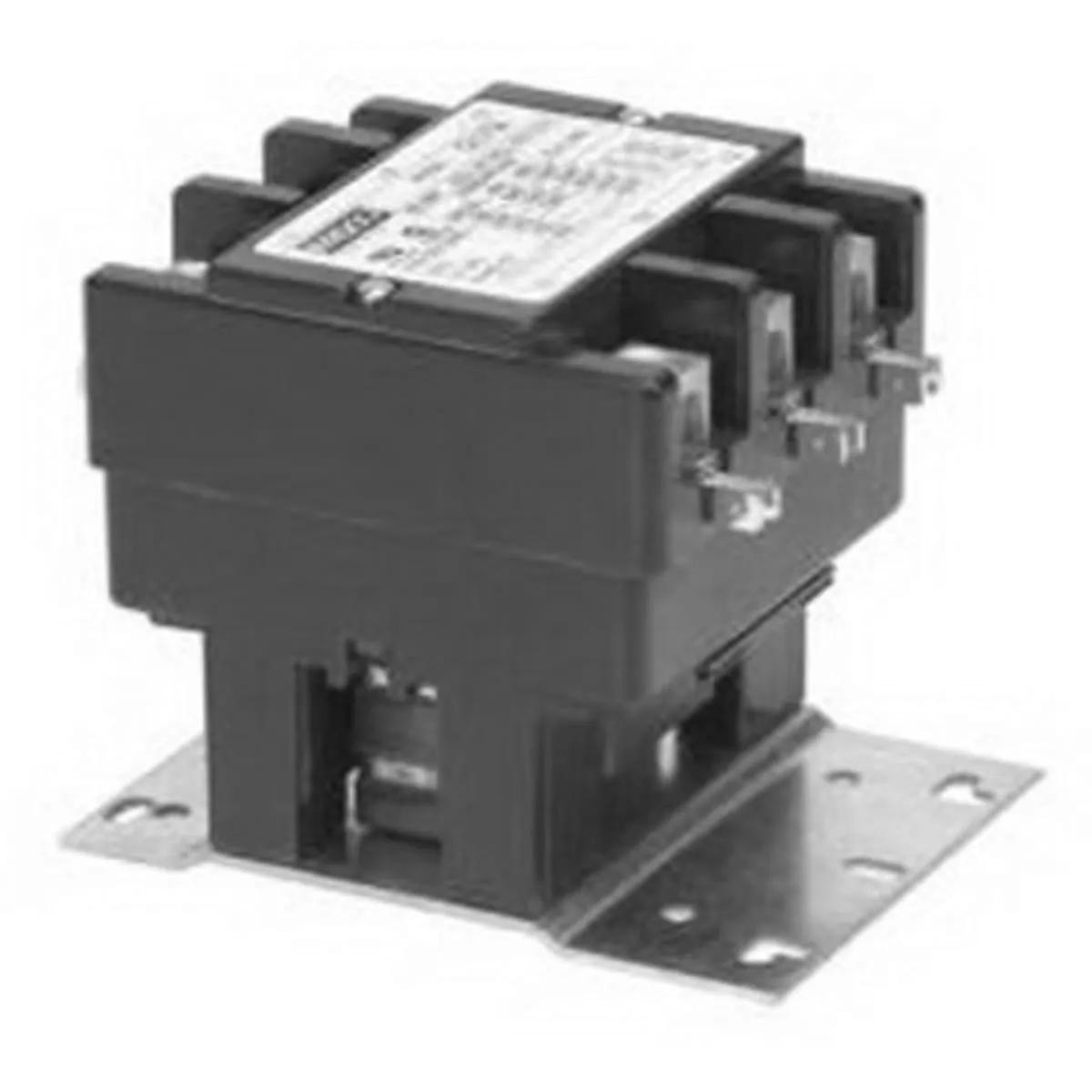

Fasco H375B Definite Purpose Contactor, 3-Pole, 75A, 120VAC, MFR ID 91423
- MFR #H375BC
- EIS #MOTH375B
- Series #H130A
$285.07 / Piece
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Products You May Also Like
| Stock Status | |||||
|---|---|---|---|---|---|
 | 24 VAC | H240A | 2 | $ / Piece | |
 | 240 VAC | H230C | 2 | $ / Piece | |
| 240 VAC | H240C | 2 | $ / Piece | |
| 120 VAC | H240B | 2 | $ / Piece | |
 | 120 VAC | H340B | 3 | $ / Piece | |
| 240 VAC | H340C | 3 | $ / Piece |
Fasco H130A Series Definite Purpose Contactor. - Fasco Definite Purpose Contactor.
Features
- 450/375/300A locked rotor amps
- 240VA coil inrush at 60 Hz, 285VA coil inrush at 50 Hz, 27VA coil sealed at 60 Hz, 42VA coil sealed at 50 Hz
- Amperage Rating: 93A (Resistive)
- Full Load Ampere: 75A Inductive
- HP Rating: 1-Phase: 5 HP at 120V, 15 HP at 208V, 15 HP at 240V, 3-Phase: 25 HP at 208V, 25 HP at 240V, 40 HP at 480V, 40 HP at 600V
General Information
| Item Name | Contactor |
| Series | H130A |
General Features
| Standards | UL Listed, CSA Certified |
| Type | Definite Purpose |
Design & Construction
| Connection Type | Lugs And Quick-Connect Terminal |
Electrical Properties
| Amperage Rating | 93 A |
| Auxiliary Contact | H9S Switch |
| Coil Voltage | 120 VAC |
| Full Load Ampere | 75 A |
| HP Rating | 40 HP |
Physical Properties
| Dimensions | 5.2 Inch W x 3.39 Inch D |
| Number of Poles | 3 |
Supporting Information
| OEM ID | H375B |
Documents
No Documents Found
