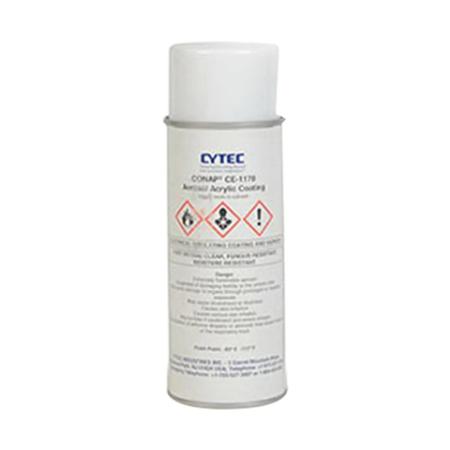

Cytec CE-1170 Conathane® One-Part Conformal Coating

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:CE-1170

EIS #:PH11-CE-1170

Series #:CE-1170

MFR #:CE-1170

EIS #:PH11-CE-1170

Series #:CE-1170

0
0
Conap CE-1170 is a single component, air drying, room temperature curing, acrylic conformal coating that meets the requirements of MIL-I-46058-C for Type AR coatings. It was developed specifically for its fast drying time and repairability, as well as to provide the ultimate in humidity resistance and hydrolytic stability while retaining excellent flexibility to prevent fracturing of fragile components during thermal cycling. Its electrical properties are outstanding. - Cured films maintain excellent adhesion to phenolic and epoxy glass laminates even in adverse environmental conditions. Components may be removed by heating the coating with a soldering iron or the entire coating may be removed with a suitable solvent. A tracer dye has been incorporated to aid inspection under ultraviolet light.
$18.41
 - $544.20
Select from the options below
0
0
Conap CE-1170 is a single component, air drying, room temperature curing, acrylic conformal coating that meets the requirements of MIL-I-46058-C for Type AR coatings. It was developed specifically for its fast drying time and repairability, as well as to provide the ultimate in humidity resistance and hydrolytic stability while retaining excellent flexibility to prevent fracturing of fragile components during thermal cycling. Its electrical properties are outstanding. - Cured films maintain excellent adhesion to phenolic and epoxy glass laminates even in adverse environmental conditions. Components may be removed by heating the coating with a soldering iron or the entire coating may be removed with a suitable solvent. A tracer dye has been incorporated to aid inspection under ultraviolet light.

Product Options

Showing 2 out of 2 options
The image shown is representative of the product family and may not specifically be the individual item.
Container Size
1 gal
EIS Part #
CONCE1170G
$ / US gallon
The image shown is representative of the product family and may not specifically be the individual item.
Container Size
13 oz
EIS Part #
CONCE1170
$ / each

Attributes

General Information
Item NameConformal Coating
Trade NameConathane®
SeriesCE-1170
General Features
Shelf Life18 Months
StandardsMIL-I-46058-C, IPC-CC-830B Certified
Storage Temperature65 to 85 °F
TypeOne-Part
Design & Construction
ColorClear
Cure TypeRoom Temperature/Heat Cure
FormLiquid
Performance Details
Application Time10 - 15 min
Full Cure Time24 hr
Chemical Properties
CompositionPolyurethane
Specific Gravity0.76
Viscosity<20 cP
VOC70%
Electrical Properties
Dielectric Strength3000V/Mil
Physical Properties
Odor/ScentModerate Solvent
