Cytec CE-1164 Conathane® One-Part Conformal Coating

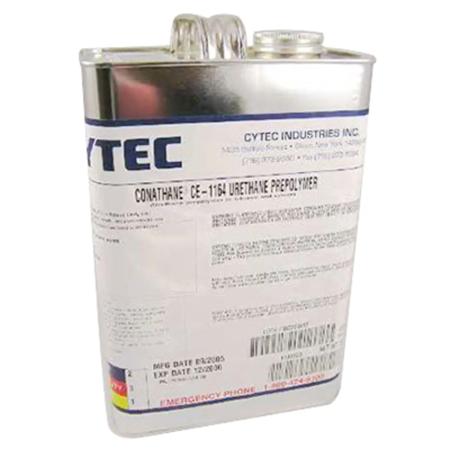

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:CE-1164

EIS #:PH11-CE-1164

Series #:CE-1164

MFR #:CE-1164

EIS #:PH11-CE-1164

Series #:CE-1164

0
0
Conap CE-1164 is a single component, air drying, room temperature curing, polyurethane conformal coating which meets the requirements of MIL-I-46058-C for Type UR coatings and appears on the Qualified Products List (QPL). CONAP CE-1164 is a solvent-based coating designed for thin-film applications on electronic components and printed circuitry. - It was developed specifically to provide the ultimate in humidity resistance and hydrolytic stability while retaining excellent flexibility to prevent fracturing of fragile components during thermal cycling. Cured films maintain excellent adhesion to phenolic and epoxy glass laminates even in adverse environmental conditions. A tracer dye has been incorporated to aid inspection under ultraviolet light.
$318.24
 - $501.44
Select from the options below
0
0
Conap CE-1164 is a single component, air drying, room temperature curing, polyurethane conformal coating which meets the requirements of MIL-I-46058-C for Type UR coatings and appears on the Qualified Products List (QPL). CONAP CE-1164 is a solvent-based coating designed for thin-film applications on electronic components and printed circuitry. - It was developed specifically to provide the ultimate in humidity resistance and hydrolytic stability while retaining excellent flexibility to prevent fracturing of fragile components during thermal cycling. Cured films maintain excellent adhesion to phenolic and epoxy glass laminates even in adverse environmental conditions. A tracer dye has been incorporated to aid inspection under ultraviolet light.

Product Options

Showing 2 out of 2 options
The image shown is representative of the product family and may not specifically be the individual item.
Container Size
1 qt
EIS Part #
CONCE1164Q
$ / Quart US l
The image shown is representative of the product family and may not specifically be the individual item.
Container Size
1 gal
EIS Part #
CONCE1164G
$ / US gallon

Attributes

General Information
Item NameConformal Coating
Trade NameConathane®
SeriesCE-1164
General Features
Shelf Life18 Months
StandardsMIL-I-46058-C, IPC-CC-830B Certified, RoHS Compliant
Storage Temperature65 to 85 °F
TypeOne-Part
Design & Construction
ColorAmber
Cure TypeRoom Temperature
FormLiquid
Performance Details
Application Time20 - 30 min
Evaporation Rate<1
Full Cure Time7 days
Chemical Properties
CompositionPolyurethane
Specific Gravity1.03
Viscosity>20.5 sq-mm/sec
VOC50%
Electrical Properties
Dielectric Strength3500V/Mil
Physical Properties
Container TypeCan
Odor/ScentCharacteristic
