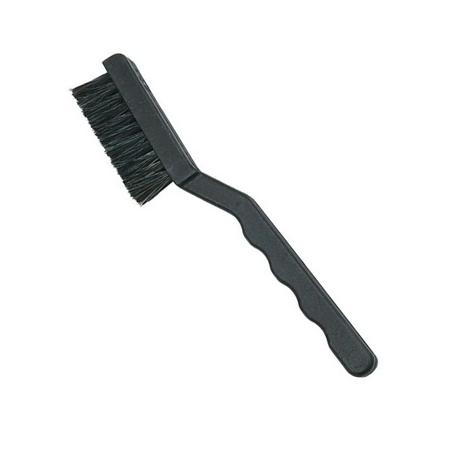

Menda Tools Conductive Brush, MFR ID 3569
- MFR #3569
- EIS #PH17-3569
- Series #3569
$21.55 - $61.72
Refine your product below or compare all choices in the
Min QTY1QTY Increment1more infoPack--
| Stock Status | |||||
|---|---|---|---|---|---|
 | 2 Inch | Conductive Yarn, Pig Hair and Horse Hair | Flat | $ / Piece Pack: Each | |
 | 2 Inch | Conductive Yarn, Pig Hair and Horse Hair | Long | $ / Piece Pack: Each | |
 | 0.25 Inch | Conductive Yarn, Pig Hair and Horse Hair | Round | $ / Piece Pack: Each | |
 | 0 Inch | Conductive Yarn and Horse Hair | Flat | $ / Piece Pack: Each | |
 | 3 Inch | Conductive Yarn, Pig Hair and Horse Hair | Curved | $ / Piece Pack: Each |
Menda firm bristles are made of conductive yarn, pig hair and horse hair firm bristles are made of conductive yarn and horse hair Generally speaking, once the conductive yarn is added to the bristles, it neutralizes the possibility of static build up caused by the natural hair. - Synthetic bristles can easily become charged with static in standard humidity conditions. Natural hair usually builds static in areas of low humidity, but due to the conductive fibers in our brushes, this problem does not take effect.
Features
- Brushes minimize static charge generation and remove electrostatic charges to ground when held by grounded personnel
- Dissipative polypropylene black handles are able to remove charges to ground
- Volume resistance of conductive fibers: 1 x 10^3 to < 1 x 10^5 ohms per ANSI/ESD STM11.12
- Volume resistance of dissipative handle: 1 x 10^4 to < 1 x 10^11 ohms per ANSI/ESD STM11.12
- Two kinds of bristles - semi fine, firm
- Firm bristles are mainly for electronics, especially circuit boards
Applications
For Removing Dust, Dirt and Left over Materials from Printed Circuit Boards (PCB) and other Static Sensitive Components
General Information
| Item Name | Conductive Brush |
| Series | 3569 |
General Features
| Standards | ANSI/ESD STM11.12 Certified |
Design & Construction
| Bristle Color | Black |
| Handle Color | Black |
| Handle Material | Polypropylene |
Documents
No Documents Found
