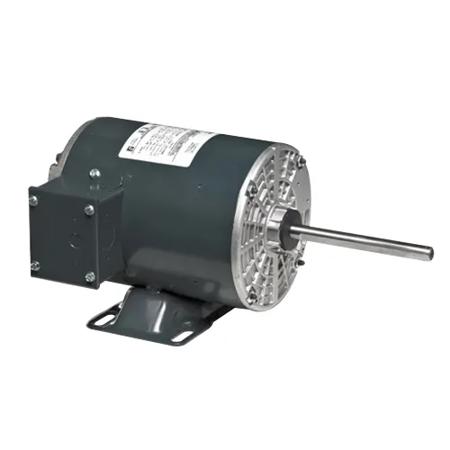

Marathon X528 Condenser Fan Motor, 1 HP, 900 rpm, 56HZ Frame, ODPAO, Rigid Base Mount
- MFR #:MA-230/460-RB-ODPA-CFM
- EIS #:MOTX528
- MFR #:MA-230/460-RB-ODPA-CFM
- EIS #:MOTX528
Available to Order
Min Qty:1
|Qty Increment:1
Marathon 460V Rigid Base Mount Open Drip proof Airover Enclosure Condenser Fan Motor. 10 IP Code - Marathon 460V Rigid Base Mount Open Drip proof Airover Enclosure Condenser Fan Motor
$1,466.71 / Piece
Min Qty:1
|Qty Increment:1
Marathon 460V Rigid Base Mount Open Drip proof Airover Enclosure Condenser Fan Motor. 10 IP Code - Marathon 460V Rigid Base Mount Open Drip proof Airover Enclosure Condenser Fan Motor
Product Options
Showing 4 out of 4 options
 | HP Rating: 1 HP | Speed Rating: 900 rpm | EIS Part #: MOTX528 | $ / Piece | |
| HP Rating: 1.5 HP | Speed Rating: 1200 rpm | EIS Part #: MOTX523 | $ / Piece | |
| HP Rating: 1 HP | Speed Rating: 1200 rpm | EIS Part #: MOTX513 | $ / Piece | |
 | HP Rating: 0.75 HP | Speed Rating: 1075 rpm | EIS Part #: MOTX432 | $ / Piece |
- Attributes
- Features
Attributes
General Information
Item NameCondenser Fan Motor
General Features
Net Weight49 lb
StandardsUL Listed, CSA Certified
Design & Construction
Frame Type56HZ
Insulation TypeClass H
KVA CodeJ
Start MethodAcross The Line
Bearing TypeBall
DutyContinous, Airover
Enclosure TypeOpen Dripproof Airover
Mounting TypeRigid Base
Shaft PositionHorizontal
Performance Details
Speed Rating900 rpm
Full Load Efficiency72% at 50 Hz, 74.5% at 60 Hz
Electrical Properties
Full Load Ampere5.3 A
HP Rating1 HP
Phase3-Phase
Frequency Rating60 Hz
Service Factor1
Voltage Rating460 V
Physical Properties
Dimensions17.06 Inch L x 6.5 Inch W x 6.74 Inch H
Number of Poles8
Shaft Diameter0.625 Inch
Shaft Length5.06 Inch
Weight49 lb
Frame Size56
Features
- 10 IP Code
- Shaft up orientation
- Frequency Rating: 50/60�Hz
- Full Load Ampere: 5.1 - 5.3A at 208 - 230V, 2.65A at 460V, 4.8A at 190V, 2.4A at 380V
- Power Rating: 0.75kW at 60 Hz, 0.56kW at 50 Hz
- Voltage Rating: 208 - 230/460V at 60 Hz, 190/380V at 50 Hz
