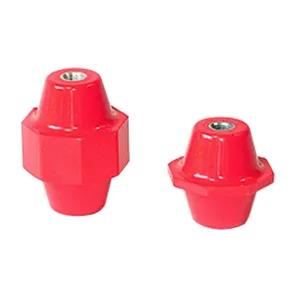

The image shown is representative of the product family and may not specifically be the individual item.
0

Mar-Bal Glastic® 5000 Aluminum Center Post Insulator, 5000 V, 3/8-16 x 9/16", 3-1/2" H, Red, MFR ID 5350-A5

  • MFR #FG4535002
  • EIS #STAOFF5350A5
$11.58 / Piece
Pack: 50/Carton
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack50/Carton
PROP_65_CANCER
WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov

All Mar-Bal standoff insulators are molded from a flame retardant and track-resistant glass reinforced thermoset polyester molding compound recognized for current carrying devices under UL Material recognition number e 80533 (n). - They combine high mechanical strength with high arc resistance and dielectric properties at elevated temperatures and humidity. These shatter-resistant insulators meet the most exacting standards for a variety of applications.

General Information

Item NameCenter Post Insulator
Trade NameGlastic®

SeriesGlastic® 5000-ALU

Design & Construction

ShapeOctagon
ColorRed
Insert TypeAluminum
MaterialPolyester

Performance Details

Flame RetardantYes
Cantilever Strength5000 Inch-lb
Compression Strength23000 lb
Tensile Strength5000 lb
Torque Strength42 ft-lb

Electrical Properties

Voltage Rating5000 V
Dielectric Strength19000 V

Physical Properties

Height3.5 Inch
Insert Size3/8 - 16-9/16 Inch
Thread Size3/8 - 16-9/16 Inch
Arc Resistance180 sec
Creep Distance0.312 Inch + Height
Face Diameter2.5 Inch
Height Tolerance+/-0.015 Inch
Water Absorption0.15%
