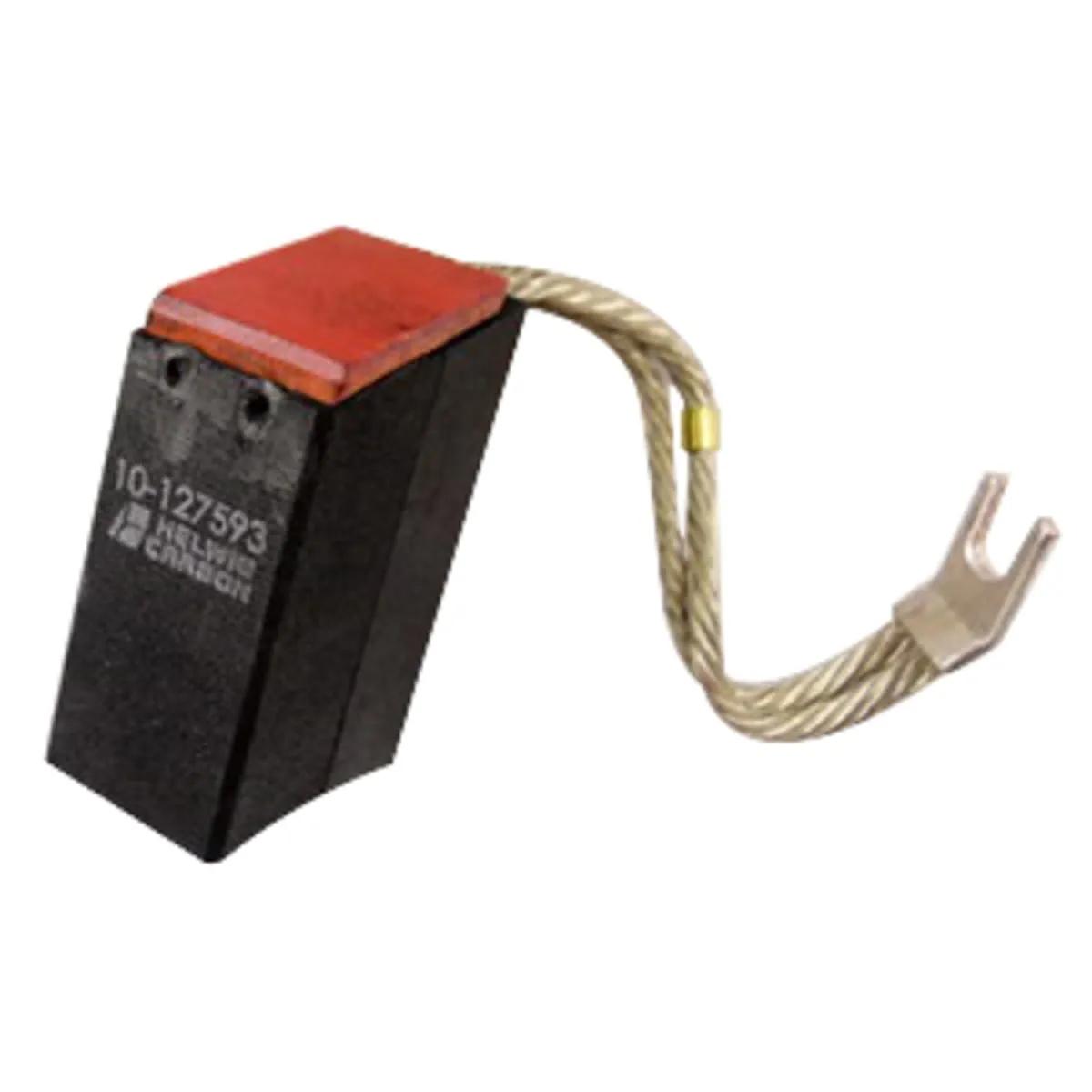

Helwig Carbon 10 Carbon Brush, 80A/sq-Inch, 2" L x 3/4" W x 1-1/4" T, H41 Grade, Electrographite, MFR ID 10-127593
- MFR #10-127593
- EIS #10-127593
- Series #H41
$102.00 / each
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Products You May Also Like
| Stock Status | |||||
|---|---|---|---|---|---|
 | 1.25 Inch | 0.75 Inch | 2 Inch | $ / each |
Helwig Electrographite H41 6/24 Concave Radius Carbon Brush. Electrographites are the most common grades used on modern equipment with good performance at high voltages, high current densities and high speeds. There is a wide range of characteristics within this category. Most electrographite grades are capable of handling overloads well.
Applications
- Used in Paper Mill
Features
- 3000 psi strength
- 0.0025000 ohm-Inch resistivity
- 15/5 bevel
- 60 shore hard
- GE motor manufacturer
General Information
| Item Name | Carbon Brush |
| Series | Helwig Electrographite H41 Carbon Brush |
General Features
| Type | 2Q38 Tamped Multi-Section |
Design & Construction
| Connection Type | 7/32 Open Tube Terminal |
| Grade | H41 |
| Material | Electrographite |
Electrical Properties
| Amperage Rating | 80 |
Physical Properties
| Brush Length | 2 Inch |
| Concave Radius | 6/24 |
| Shunt Length | 3.5 Inch |
| Thickness | 1.25 Inch |
| Width | 0.75 Inch |
