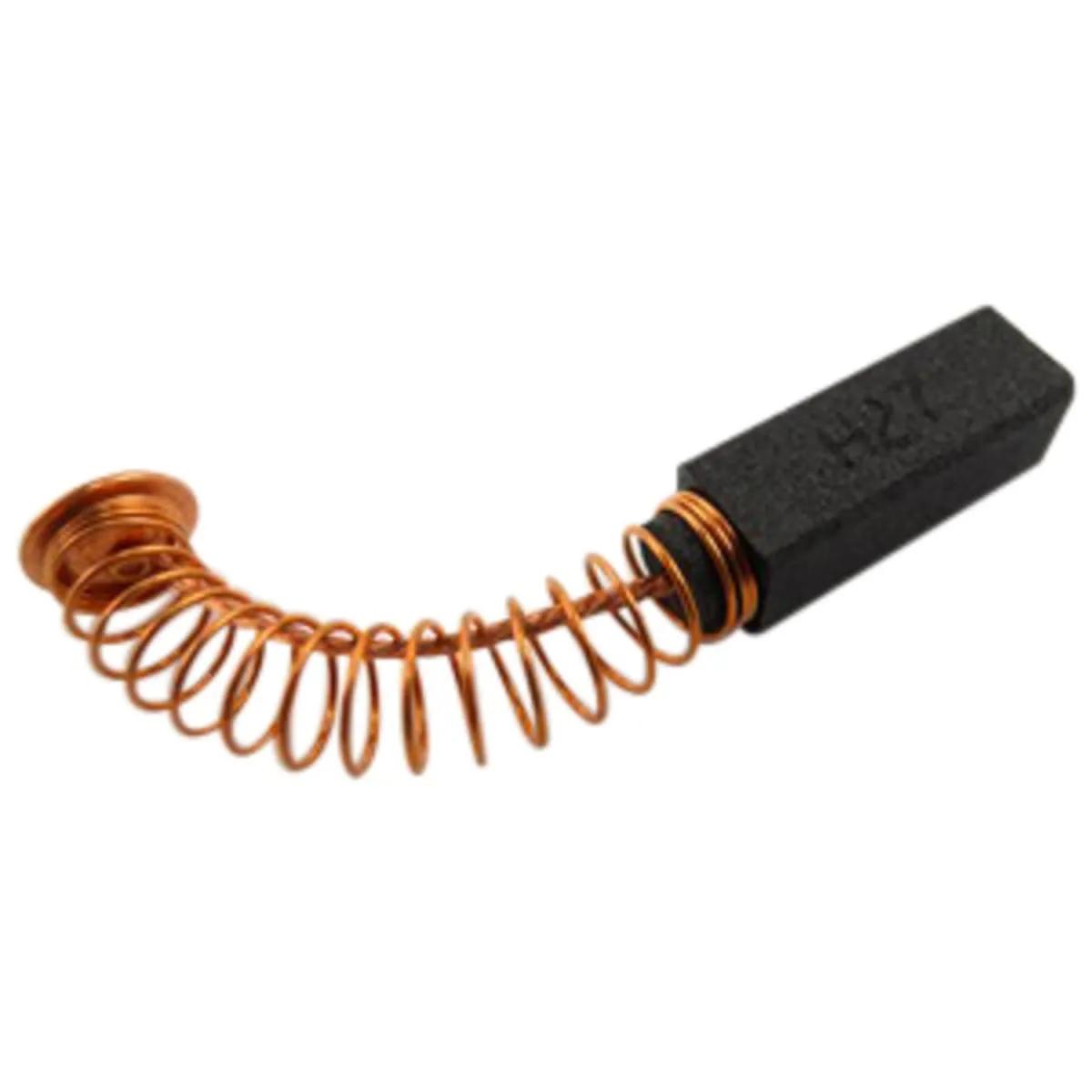

Helwig Carbon 10 Carbon Brush, 80A/sq-Inch, 3/4" L x 1/4" W x 1/4" T, H27 Grade, Electrographite, MFR ID 10-252522
- MFR #10-252522
- EIS #10-252522
- Series #H27
Requires Quote / each
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Products You May Also Like
| Stock Status | |||||
|---|---|---|---|---|---|
 | 0.125 Inch | 0.25 Inch | 0.625 Inch | $ / each | |
 | 0.25 Inch | 0.25 Inch | 0.75 Inch | $ / each more info |
Helwig Electrographite H27 Carbon Brush. Electrographites are the most common grades used on modern equipment with good performance at high voltages, high current densities and high speeds. There is a wide range of characteristics within this category. Most electrographite grades are capable of handling overloads well.
Features
- 3900 psi strength
- 0.0017000 ohm-Inch resistivity
- 0/0 bevel
- 65 shore hard
- Boehm/Baldor Motor Manufacturer
General Information
| Item Name | Carbon Brush |
| Series | Helwig Electrographite H27 Carbon Brush |
General Features
| Type | Q101 Tamped with Spring |
Design & Construction
| Connection Type | 0.305 Inch Round Cap Terminal |
| Grade | H27 |
| Material | Electrographite |
Electrical Properties
| Amperage Rating | 80 |
Physical Properties
| Brush Length | 0.75 Inch |
| Concave Radius | 5/48 |
| Shunt Length | 1.5 Inch |
| Thickness | 0.25 Inch |
| Width | 0.25 Inch |
Supporting Information
| For Use With | Fractional HP Motor |
| Use With | Fractional HP Motor |
