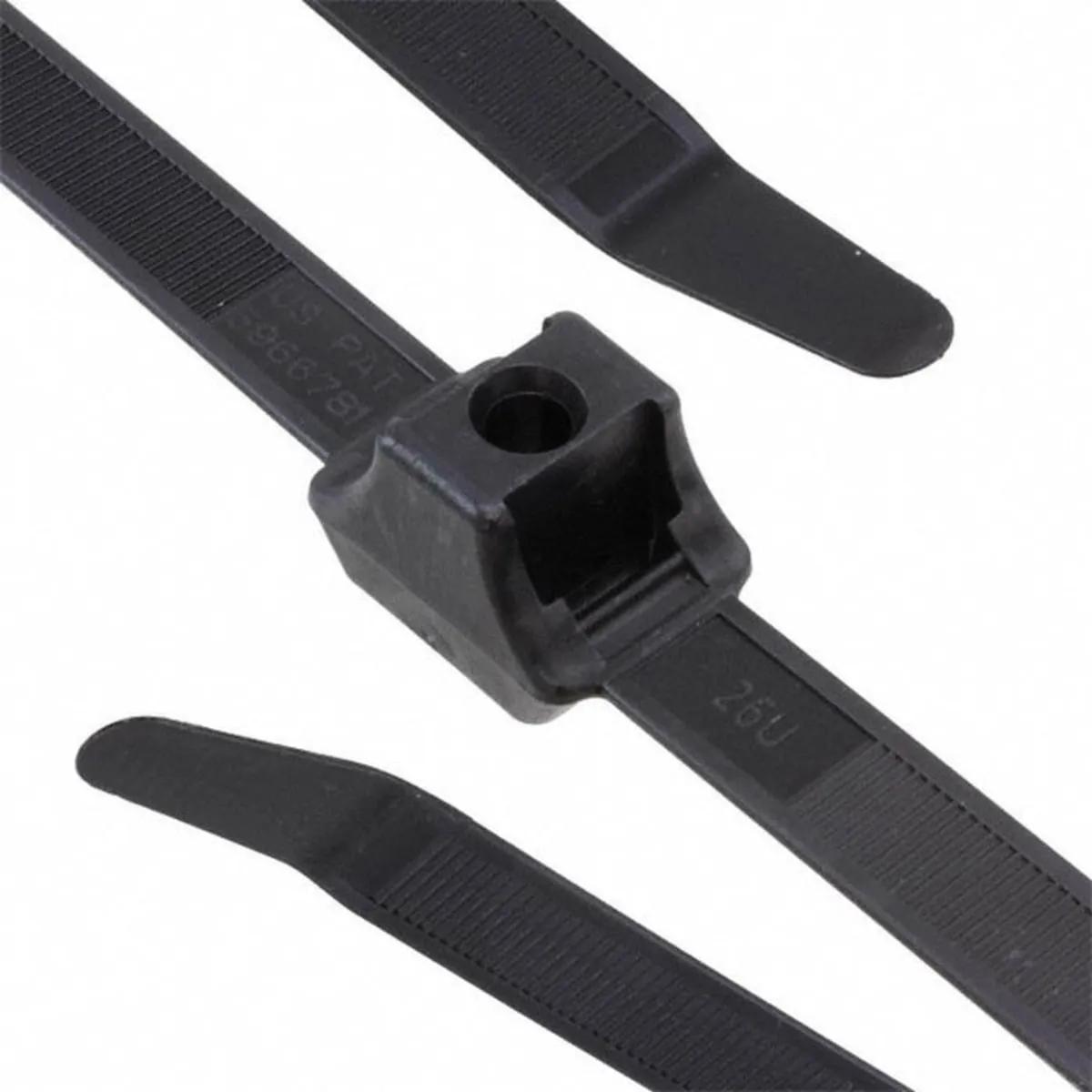

HellermannTyton DCT110HIRK2 Dual Clamp Black Polyamide Cable Tie, 19.2" L, 150 lb, 50/Pack
- MFR #DCT110HIRK2
- EIS #TIEDCT110HIRK2
- Series #HT_DC11
- UPC #00089306165286
$183.87 / Package
Pack: 50/Pack
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack50/Pack
| Stock Status | |||
|---|---|---|---|
 | 13 Inch | $ / Piece Pack: 50/Pack more info | |
 | 19.2 Inch | $ / Package Pack: 50/Pack |
HellermannTyton's dual clamp ties are designed to provide parallel separation between hoses, wires, cables and tubing, protecting them from abrasion. The unique one-piece design features the dual head centered on the strap. - These ties have an optional mounting hole for securing bundles along the chassis of tracks, trailers and heavy duty equipment.
Features
- Provides dual separation between bundles to prevent chaffing and abrasion
- 150 lb tensile strength ensures enough strength for heavy duty applications
- Straps are releasable for increased serviceability
- 0.8 Inch height
- 0.2 Inch mounting hole diameter
Applications
- For Securing Bundles along the Chassis of Trucks, Trailers and Heavy Duty Equipment
General Information
| Item Name | Cable Tie |
| Series | HT_DC11 |
General Features
| Type | Dual Clamp |
| Standards | UL94 HB, RoHS Compliant |
Design & Construction
| Color | Black |
| Locking Mechanism | Double Head Releasable |
| Material | Polyamide 6.6 |
| Mounting | 0.25 Inch Weld Stud |
Performance Details
| Operating Temperature | -40 to 230 °F |
| Tensile Strength | 150 lb |
Physical Properties
| Bundle Diameter | 0.2 - 2.3 Inch |
| Length | 19.2 Inch |
| Head Height | 0.75 Inch |
| Head Width | 0.78 Inch |
| Thickness | 0.06 Inch |
| Width | 0.5 Inch |
Environmental Condition
| Resists | UV Radiation |
Supporting Information
| For Use With | MK9, MK9HT, MK9P Tools |
