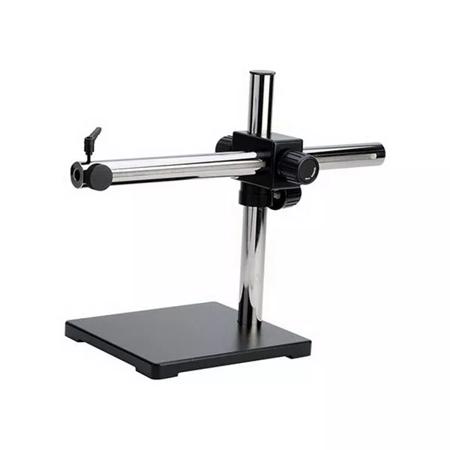

Aven 26800B-519 Single Arm Boom Stand with Heavy Base, 285 mm x 260 mm x 18 mm Base, Metal
- EIS #:26800B-519-AVE
- UPC #:00766955371939
- EIS #:26800B-519-AVE
- UPC #:00766955371939
Available to Order
Min Qty:1
|Qty Increment:1
Heavy base provides excellent stability, vertical post reaches 384 mm providing over 264 mm of working space underneath the objective lens. Using this stand will allow you to position the microscope over large objects. All friction locking screws are capped with large knobs for easy and quick adjustments, will accept bodies SSZ, SPZ, DSZ ,and NSW series. - This single arm boom stand from Aven is perfect for stationary video or microscopy applications. The stand allows for easy movement over large objects and the heavy base provides stability. Focus mount SCW-PA with tiltable arbor 26800B-521 or E-ARM required.
$317.18 / Piece
Min Qty:1
|Qty Increment:1
Heavy base provides excellent stability, vertical post reaches 384 mm providing over 264 mm of working space underneath the objective lens. Using this stand will allow you to position the microscope over large objects. All friction locking screws are capped with large knobs for easy and quick adjustments, will accept bodies SSZ, SPZ, DSZ ,and NSW series. - This single arm boom stand from Aven is perfect for stationary video or microscopy applications. The stand allows for easy movement over large objects and the heavy base provides stability. Focus mount SCW-PA with tiltable arbor 26800B-521 or E-ARM required.
- Attributes
- Features
- Applications
Attributes
General Information
Item NameBoom Stand with Heavy Base
General Features
TypeSingle Arm
Design & Construction
MaterialMetal
Supporting Information
For Use WithSSZ, SPZ, DSZ and NSW Series Microscopes
IncludesUsers Manual
Features
- Heavy base provides excellent stability
- Allows positioning of microscopes over large area
- Heavy duty all metal construction for durability
- Posts are highly polished for smooth operation
- SCW-PA focus mount with tiltable arbor 26800B-521 or E-Arm
- 37.2 mm diameter x 384 mm length vertical post
- 37.2 mm diameter x 483 mm length arm
- 15.875 mm diameter focus mount hole size
Applications
- For Stationary Video or Microscopy Applications
