MFR #:ZCM10001
EIS #:PH22-ZCM10001
MFR #:ZCM10001
EIS #:PH22-ZCM10001

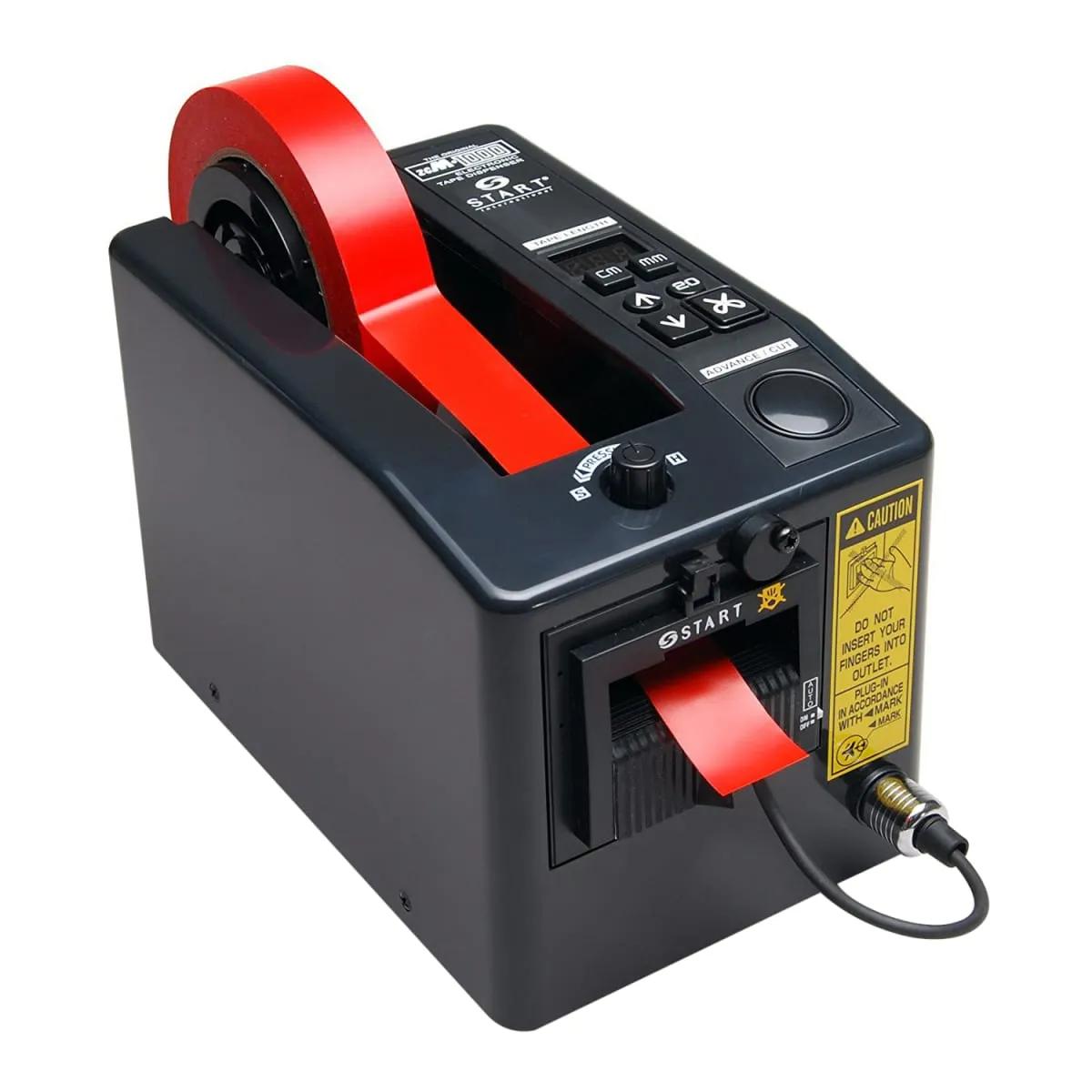

The START International ZCM1000 electric tape dispenser automatically cuts and advances predefined tape lengths and is suitable for medium to high production of repetitive taping in industrial applications. The dispenser accepts tape 0.28 to 2 Inch wide, with an outside roll diameter up to 7 Inch. Using the LED display, feed and cut can be set to automatically advance and cut the material. The photosensor detects if there is tape at the outlet for accurate and consistent feeds and cuts. The feed and cut can also be operated manually with a push button. Preset lengths of 0.79 to 39 Inch can be overridden for a custom cut and then returned to the autofeed settings. Feed roller pressure can be adjusted for tape thickness. - The guillotined cut provides a straight edge to the dispensed tape. Estimated blade life is 200000 cuts, depending upon the type of tape material. Cut length tolerance is + or - 0.04 Inch. The 3-in-1 core holder allows a range of tape roll sizes to be mounted. The dispenser has a steel frame for durability and a cabinet made from flame retardant, anti-static composite.
$919.93
- $1,036.32
Select from the options below
The START International ZCM1000 electric tape dispenser automatically cuts and advances predefined tape lengths and is suitable for medium to high production of repetitive taping in industrial applications. The dispenser accepts tape 0.28 to 2 Inch wide, with an outside roll diameter up to 7 Inch. Using the LED display, feed and cut can be set to automatically advance and cut the material. The photosensor detects if there is tape at the outlet for accurate and consistent feeds and cuts. The feed and cut can also be operated manually with a push button. Preset lengths of 0.79 to 39 Inch can be overridden for a custom cut and then returned to the autofeed settings. Feed roller pressure can be adjusted for tape thickness. - The guillotined cut provides a straight edge to the dispensed tape. Estimated blade life is 200000 cuts, depending upon the type of tape material. Cut length tolerance is + or - 0.04 Inch. The 3-in-1 core holder allows a range of tape roll sizes to be mounted. The dispenser has a steel frame for durability and a cabinet made from flame retardant, anti-static composite.
Product Options
Showing 2 out of 2 options
Voltage Rating: 230 V | EIS Part #: STARTZCM1000-2 | $ / Piece | ||
Voltage Rating: 117 V | EIS Part #: STARTZCM1000 | $ / each |
- Attributes
- Features
- Applications
- Documents
Attributes
General Information
Item NameAutomatic Tape Dispenser
SeriesZCM10001
General Features
Net Weight5.3 lb
Design & Construction
Capacity0.79 Inch
ColorBlack
Frame MaterialPlastic
Technical Details
Accuracy+/- 0.04 Inch
Electrical Properties
Frequency Rating50 Hz
Physical Properties
Core Size1, 1.4, 3 Inch
Size9.7 Inch L x 5.4 Inch W x 5.9 Inch H
Supporting Information
Max. Roll Diameter7 Inch
Tape Width0.28 Inch
Features
- Auto feed and cut tape dispenser that is ideal for medium to high production of repetitive taping for industrial applications
- Includes digital length adjustment, safety guard
- Photocell actuated feed and cut or push-button feed and cut LED Digital length adjustment
- Blades good for 200000 cuts
- Steel frame for durability
- Cabinet made from flame retardant antistatic composite (auto ignition of 480 °C)
- Adjustable pressure roller for different thicknesses of tape
- Used in manufacturing plants world-wide for 30 years
- Be sure to look for the START hologram label on our dispenser to ensure you are receiving the original M1000 (ZCM1000)
- Tape width of 0.28 - 2 Inch
- Capacity of 0.79 - 39 Inch in 1.2 Inch Intervals
- Frequency rating of 50/60 Hz
Applications
- For Medium to High Production of Repetitive Taping for Industrial Applications
