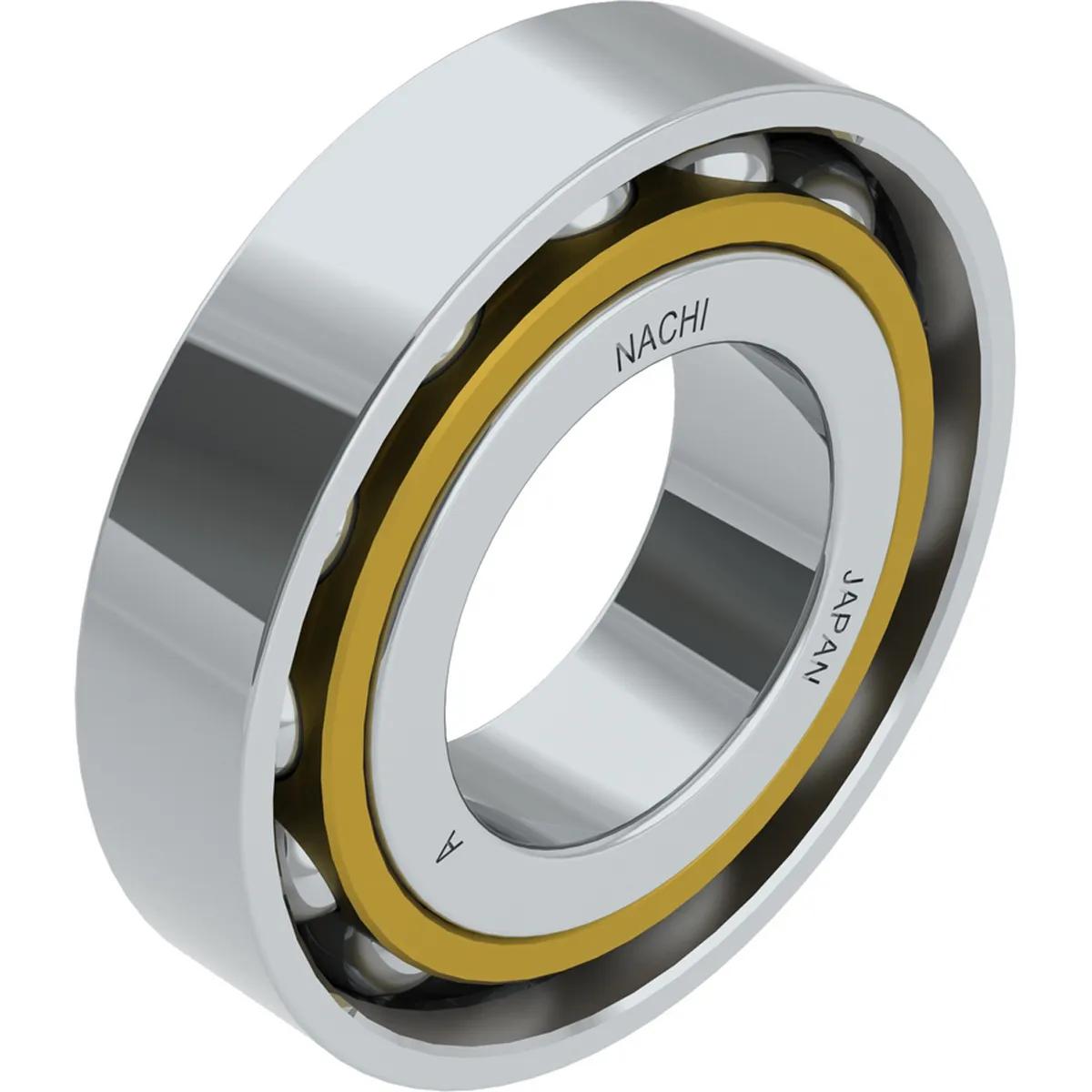

Nachi 7322BMUC3BNLZ - 7300 Series Angular Contact Ball Bearing, MFR ID NAC-7322BMUC3
- MFR #7322BMUC3
- EIS #7322BMUC302
- UPC #4991893851489
$893.59 / Piece
In Stock | Ready to Ship
Min QTY1QTY Increment1
more info
Angular Contact Ball Bearing. Balls and the inner ring and outer ring raceways are designed for contact in a specific contact angle, which means this type of bearing is suitable for composite loads (axial load and radial load). The contact angle means that axial force components are generated when a radial load is applied, so these are normally used in pairs at either end of a shaft.
Features
- With angular contact ball bearings, the balls and the inner ring and outer ring raceways form a specific angle of contact
- When used in a single configuration, axial load is limited to a single direction, this type of bearing is suitable for bearing composite loads made up of axial and radial loads
- Since this type of bearing has a contact angle, axial components are generated when a radial load is applied
- Becasue of this, this type of bearing is normally used in pairs at either end of a shaft.
General Information
| Item Name | Angular Contact Ball Bearing |
General Features
| Net Weight | 24.2 lb |
Design & Construction
| Bore Type | Cylindrical |
| Cage Material | Machined High Strength Brass Cage |
| Inner Ring Material | JIS SUJ2 Steel |
| Outer Ring Material | JIS SUJ2 Steel |
| Rolling Element Material | JIS SUJ2 Steel |
Performance Details
| Contact Angle | 40 |
| Dynamic Load Capacity | 213000 N |
| Operating Temperature | 120 °C (248 °F) |
| Precision Class | P0 |
| Speed Rating | 2400 rpm (Grease) | 3200 rpm (Oil) |
| Static Load Capacity | 208000 N |
Physical Properties
| Bore Diameter | 110 mm |
| Outside Diameter | 240 mm |
| Overall Width | 50 mm |
| Radial Internal Clearance | C3 |
