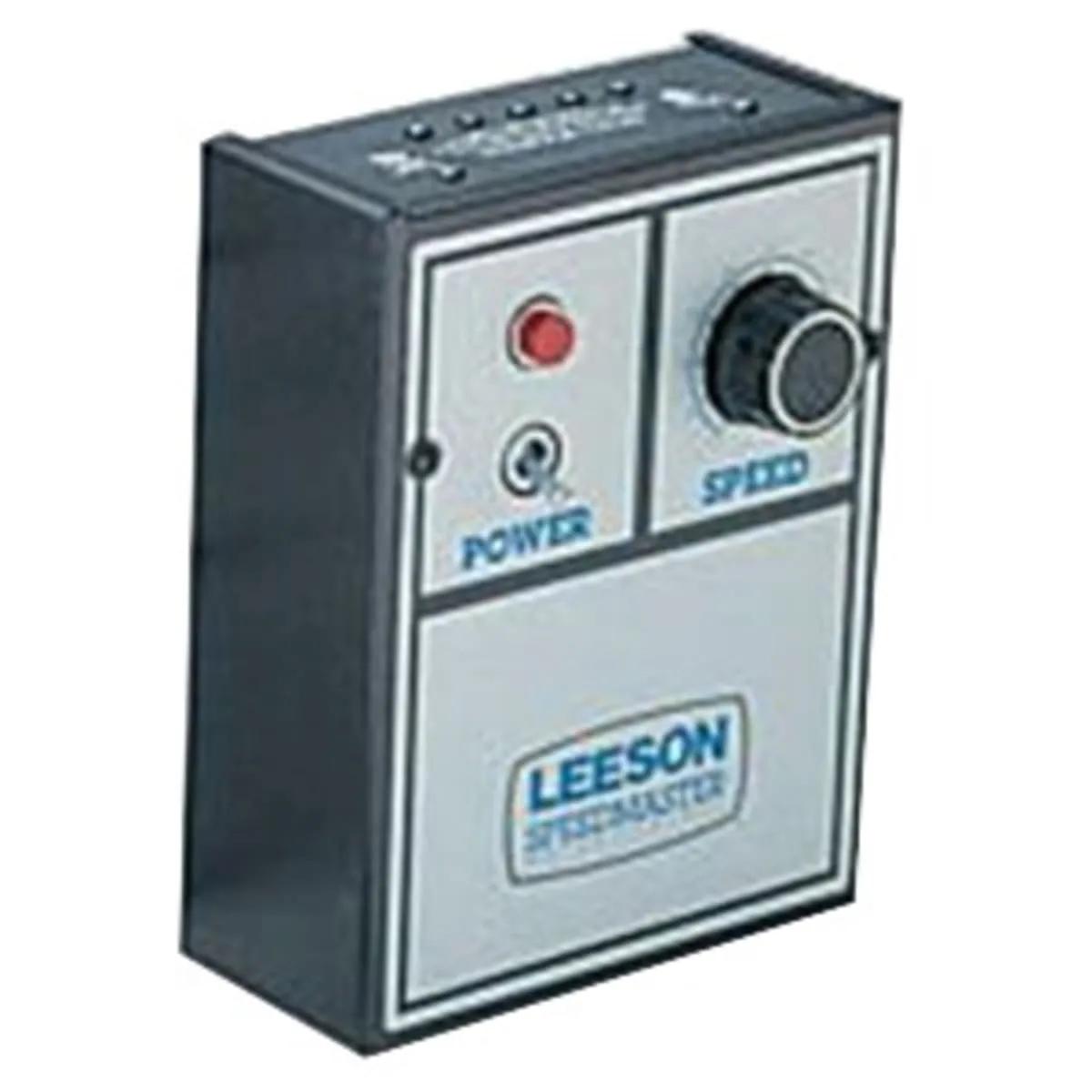

Leeson 174307.00 SCR Voltage Thyristor Adjustable Speed DC Controller, 1/8 - 1 HP at 115VAC, 1/4 - 2 HP at 230VAC, 90/180VDC, 10A Output
- MFR #174307.00
- EIS #MOT174307
- Series #LE-SCR-Voltage-Thyristor
$590.92 / each
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
| Stock Status | |||||
|---|---|---|---|---|---|
 | 10 A | NEMA 1 | Counter-Clockwise | $ / each | |
 | 10 A | NEMA 1 | Reversible | $ / each |
DC controls are general purpose drives designed for use with permanent magnet type direct current motors. NEMA 1 enclosed drives are suitable for most industrial applications, with the NEMA 4X enclosures best suited for washdown or outdoor installations or for extremely dusty applications. Chassis only units are available for building into equipment, machinery or existing enclosures. - Most controls have a dual voltage switch allowing the control to be used on 115 or 230 volt, single phase, 50/60 Hertz service. However, the proper voltage motor should be selected for use with the power supply input, i.e., 90 volt DC motors for 115 volt input or 180 volt motors for 230 volt input service. Installation and adjustment instructions are included.
Features
- NEMA 4X and 4/12 suitable for wash down applications
- Dual voltage capable on most designs
- 115/230 V 1-phase input voltage - DC 90V or 180V output
- Adjustable minimum and maximum speed
- Speed pot included on chassis controls
- Adjustable IR compensation
- Heat sinks required as noted
- HP Rating: 1/8 - 1 HP at 115VAC, 1/4 - 2 HP at 230VAC
- Output Voltage: 90/180VDC
- Voltage Rating: 115/230V
General Information
| Item Name | Adjustable Speed DC Controller |
| Trade Name | Speedmaster™ |
| Series | LE-SCR-Voltage-Thyristor |
General Features
| Net Weight | 6 lb |
| Type | SCR Voltage, Thyristor |
Design & Construction
| Enclosure Type | NEMA 1 |
| Rotation | Counter-Clockwise |
Electrical Properties
| HP Rating | 0.125 HP |
| Output Current | 10 A |
| Output Voltage | 90 VDC |
| Phase | 1-Phase |
| Voltage Rating | 115 V |
| IR Compensation | Adjustable |
