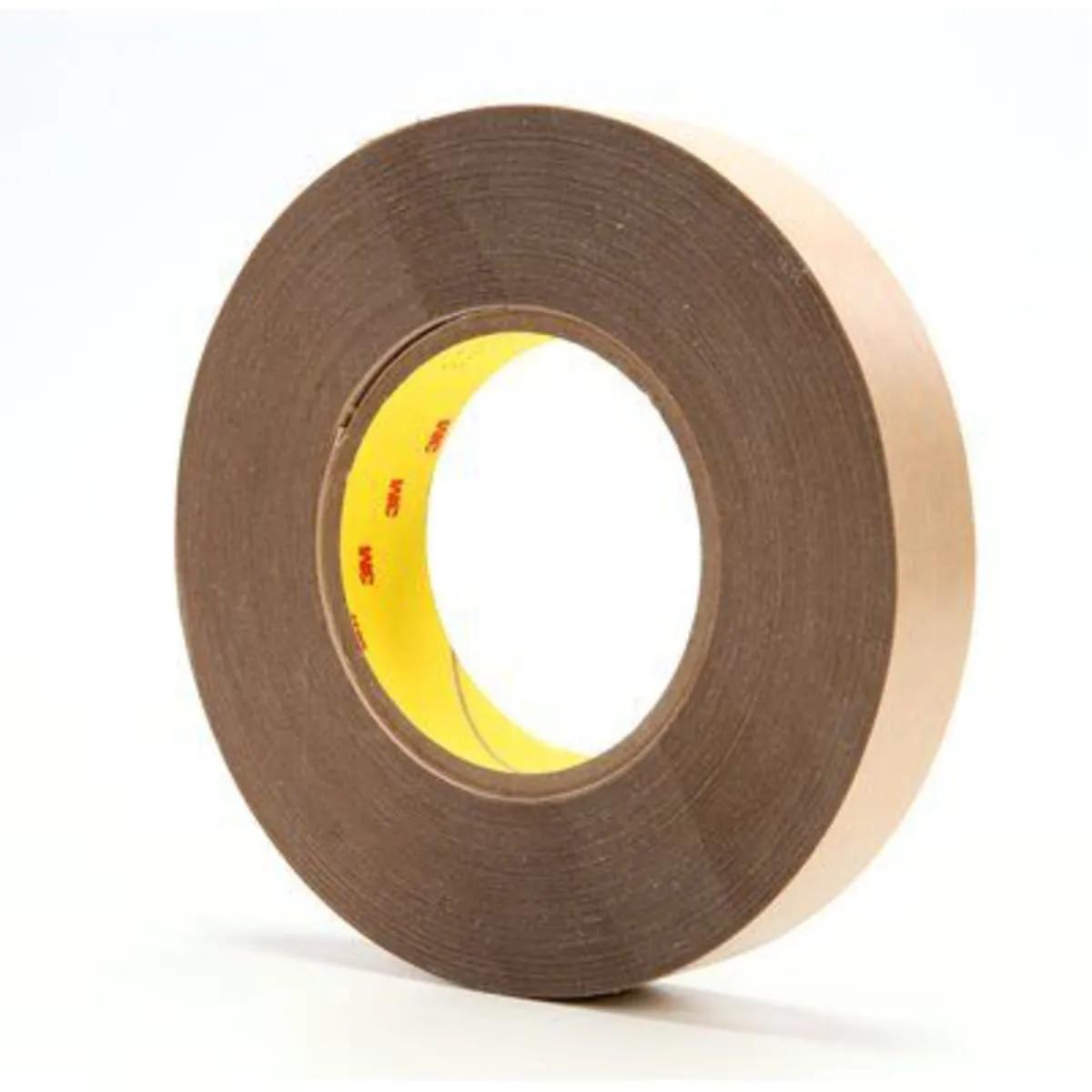

3M 9485PC Adhesive Transfer Tape, 1" x 60 yd x 5 Mil, Polycoated Kraft Paper, Clear/Tan Liner, 36/Case, MFR ID 7000123367
- MFR #7000123367
- EIS #3M9485PCX1
- UPC #00021200634772
$46.52 / Roll
Pack: 36/Case
In Stock | Ready to Ship
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack36/Case
| Stock Status | |||
|---|---|---|---|
 | 1 Inch | $ / Roll Pack: 36/Case | |
 | 2 Inch | $ / Roll Pack: 24/Case more info |
3M™ Adhesive Transfer Tape 9485PC leverages the power of 3M™ High Performance Acrylic Adhesive 350 and is mounted on a tan, 58 lb. PCK (polycoated kraft) paper liner for moisture resistance. This transfer tape is an excellent solution bonding high and low surface energy materials. It can also be used for joining materials that have rougher surfaces. - High tack and shear strength. Excellent temperature and solvent resistance. Excellent adhesion to plastics and foams. Used for joining materials that are relatively smooth, thin and have low residual stress. Contains a fiber reinforced adhesive which is important for roll stability in narrow widths.
Applications
- For Adhering, Joining, Affixing, Bonding, Mounting, Holding, Laminating and Attaching
Features
- Used for joining materials that are relatively smooth, thin and have low residual stress
- Excellent temperature and solvent resistance
- Excellent adhesion to plastics and foams
- For adhesive strength see TDS
- Temperature rating of -40 to 450 °F
General Information
| Item Name | Adhesive Transfer Tape |
| Series | 9485PC |
General Features
| Shelf Life | 24 Months |
| Storage Temperature | 22 °C |
Design & Construction
| Adhesive Type | Acrylic |
| Color | Clear/Tan Liner |
| Liner Material | Polycoated Kraft Paper |
Performance Details
| Shear Strength | See TDS |
Physical Properties
| Width | 1 Inch |
| Adhesive Thickness | 5 mil |
| Core Size | 3 Inch |
| Length | 60 Yard |
| Liner Thickness | 4.2 mil |
| Thickness | 5 Mil |
Environmental Condition
| Resists | Chemical, Humidity, Moisture, Plasticizer, UV, Temperature |
| Temperature Rating | 450 °F |
