Leeson 115778 AC Motor, 1 HP, 1200 rpm, F56Y Frame, DP, Rigid Base Mount

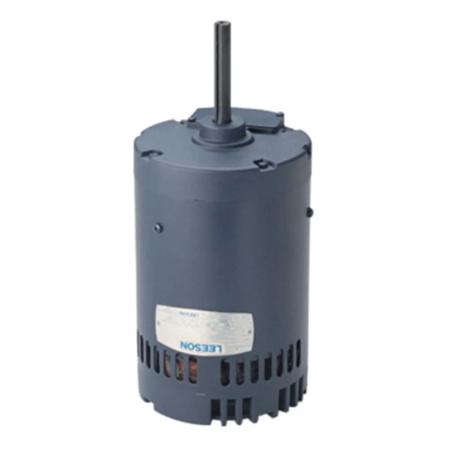

The image shown is representative of the product family and may not specifically be the individual item.
  • MFR #:LEDPRBACM
  • EIS #:MOT115779
  • MFR #:LEDPRBACM
  • EIS #:MOT115779
Available to Order

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
Leeson AC Motor, Ball Bearing, Continuous Duty, Dripproof Enclosure, Blue Enamel Painted, 60 Hz, class B Insulation, Rigid Base Mount, 6 Pole, Overload Protector: No, 3-Phase, Reversible Rotation, Horizontal Shaft, Across The Line, 40 deg C. Leeson Dripproof Continuous Duty TD AC Motor.
$387.09 / Piece

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
Leeson AC Motor, Ball Bearing, Continuous Duty, Dripproof Enclosure, Blue Enamel Painted, 60 Hz, class B Insulation, Rigid Base Mount, 6 Pole, Overload Protector: No, 3-Phase, Reversible Rotation, Horizontal Shaft, Across The Line, 40 deg C. Leeson Dripproof Continuous Duty TD AC Motor.

Product Options

Showing 4 out of 4 options
The image shown is representative of the product family and may not specifically be the individual item.
Full Load Ampere:
2.8 A
HP Rating:
0.5 HP
EIS Part #:
MOT116773
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.
Full Load Ampere:
5.6 A
HP Rating:
1.5 HP
EIS Part #:
MOT116772
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.
Full Load Ampere:
4 A
HP Rating:
1 HP
EIS Part #:
MOT115779
$ / Piece
The image shown is representative of the product family and may not specifically be the individual item.
Full Load Ampere:
3.8 A
HP Rating:
1 HP
EIS Part #:
MOT115778
$ / Piece

Attributes

General Information

Item NameAC Motor
Trade NameLeeson

SeriesLEDPRBACM

General Features

StandardsUL Listed, CSA Certified
Net Weight35 lb
TypeTD

Design & Construction

Bearing TypeBall
DutyAirover
Enclosure TypeDripproof
Insulation TypeClass B
KVA CodeJ
Mounting TypeRigid Base
RotationReversible
Shaft PositionHorizontal

Performance Details

Full Load Efficiency81%
1/2 Load Efficiency77.6%
3/4 Load Efficiency79.6%
Torque Rating4.5 oz-ft
Speed Rating1200 rpm

Electrical Properties

Frequency Rating60
Full Load Ampere4 A
Full Load Power Factor60.7%
1/2 Load Power Factor40.2%
HP Rating1 HP
Phase3-Phase
Service Factor1.15
3/4 Load Power Factor52.3%
Voltage Rating208 V

Physical Properties

Dimensions14.06 Inch L x 6.5 Inch W x 6.77 Inch H
Number of Poles6
Shaft Length3.75
Weight35 lb
Frame Size56
Shaft Diameter0.625 Inch

Environmental Condition

Thermal ProtectionYes
Temperature Rating40 °C
