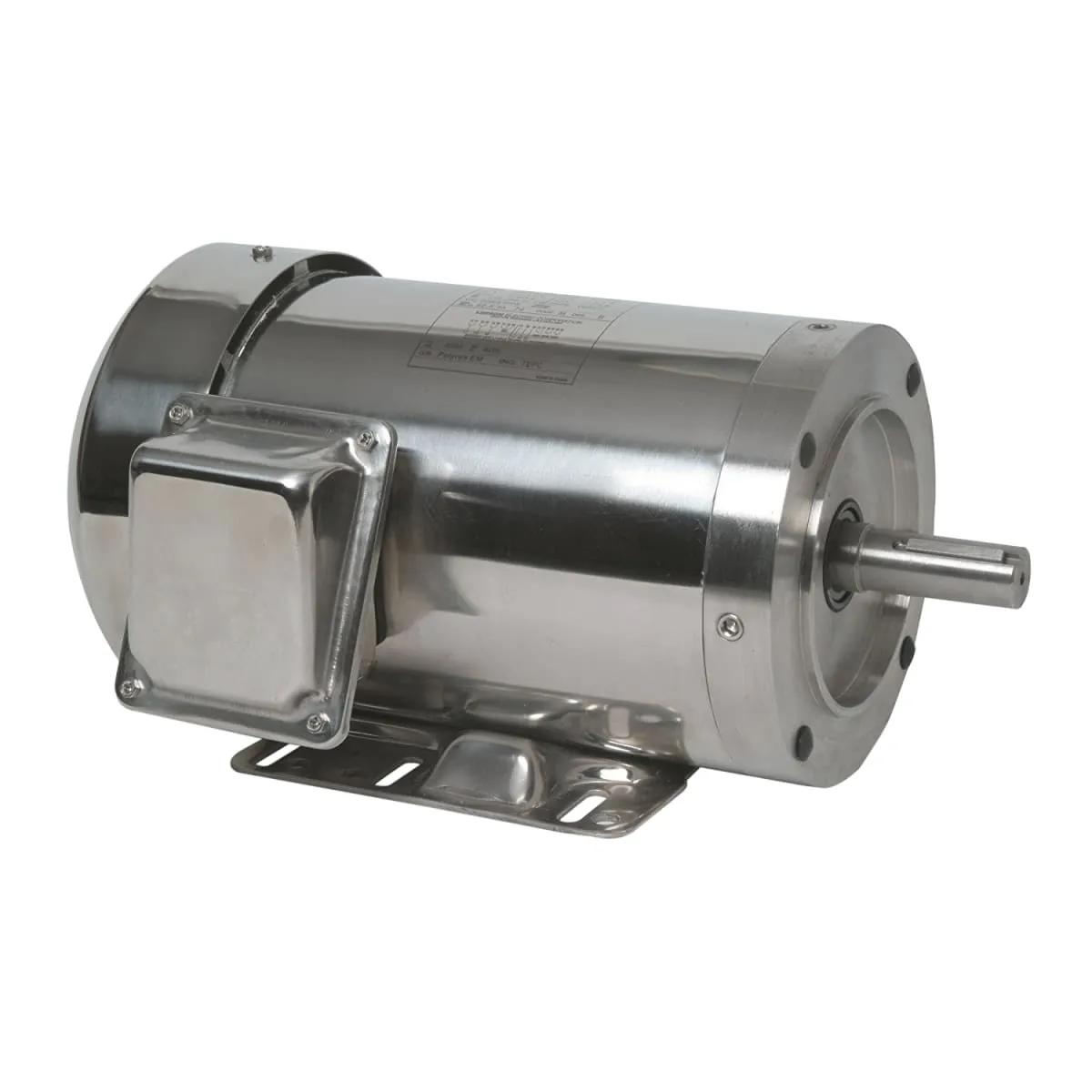

Leeson Washguard® 380V 3-Phase C-Face with Rigid Base Mount Totally Enclosed Fan-Cooled (TEFC) Enclosure Reversible AC Motor, MFR ID LE-W-230/460-CFWRGB-SST-TEFC-ACM
- MFR #LE-W-230/460-CFWRGB-SST-TEFC-ACM
- EIS #PH23-LE-W-230/460-CFWRGB-SST-TEFC-ACM
$1,777.97 - $2,532.21
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--Products You May Also Like
| Stock Status | |||||
|---|---|---|---|---|---|
 | 1 HP | 3600 rpm | 143TC | $ / Piece | |
| 2 HP | 3600 rpm | 145TC | $ / Piece |
Leeson 380V 3-Phase C-Face with Rigid Base Mount Totally Enclosed Fan-Cooled Enclosure Reversible AC Motor. USDA-approved epoxy painted motors, 3-year warranty on encapsulated and Premium efficient models, Wash-down brakemotors and pump motors available, Stainless steel motors, Encapsulated stainless steel motors available - Leeson Washguard® 380V 3-Phase C-Face with Rigid Base Mount Totally Enclosed Fan-Cooled Enclosure Reversible AC Motor
Features
- USDA-approved epoxy painted motors
- 3-year warranty on encapsulated and Premium efficient models
- Wash-down brakemotors and pump motors available
- Stainless steel motors
- Encapsulated stainless steel motors available
- NEMA and IEC flange motors
- Three phase, single phase and DC wash-down duty motors
- AC and DC wash-down gearmotors
- Rigid base and C face mount types
- BISSC approved designs
- Double lip contact seals and v-ring seals used for shaft seals
- Frequency Rating: 50/60 Hz
- Temperature Rating: 40 °C Ambient
- Voltage Rating: 208 - 230/460V, 190/380V
Applications
- Designed To Meet The Demanding Wash down Conditions That You May Find In Food Processing Plants, Chemical Processing, Pharmaceutical Plants And The Beverage And Brewing Industries
General Information
| Item Name | AC Motor |
| Trade Name | Washguard® |
General Features
| Type | TF |
| Standards | UL Listed, CSA Certified, CE Certified |
Design & Construction
| Bearing Type | Ball |
| Construction | Stainless Steel |
| Duty | Continous |
| Enclosure Type | Totally Enclosed Fan-Cooled |
| Insulation Type | Class F |
| Mounting Type | C-Face with Rigid Base |
| Rotation | Reversible |
| Seal Type | Viton® |
| Shaft Position | Horizontal |
Electrical Properties
| Frequency Rating | 60 Hz |
| Phase | 3-Phase |
| Service Factor | 1.15 |
| Voltage Rating | 380 V |
Environmental Condition
| Degree of Protection | IP55 |
| Temperature Rating | 40 °C |
