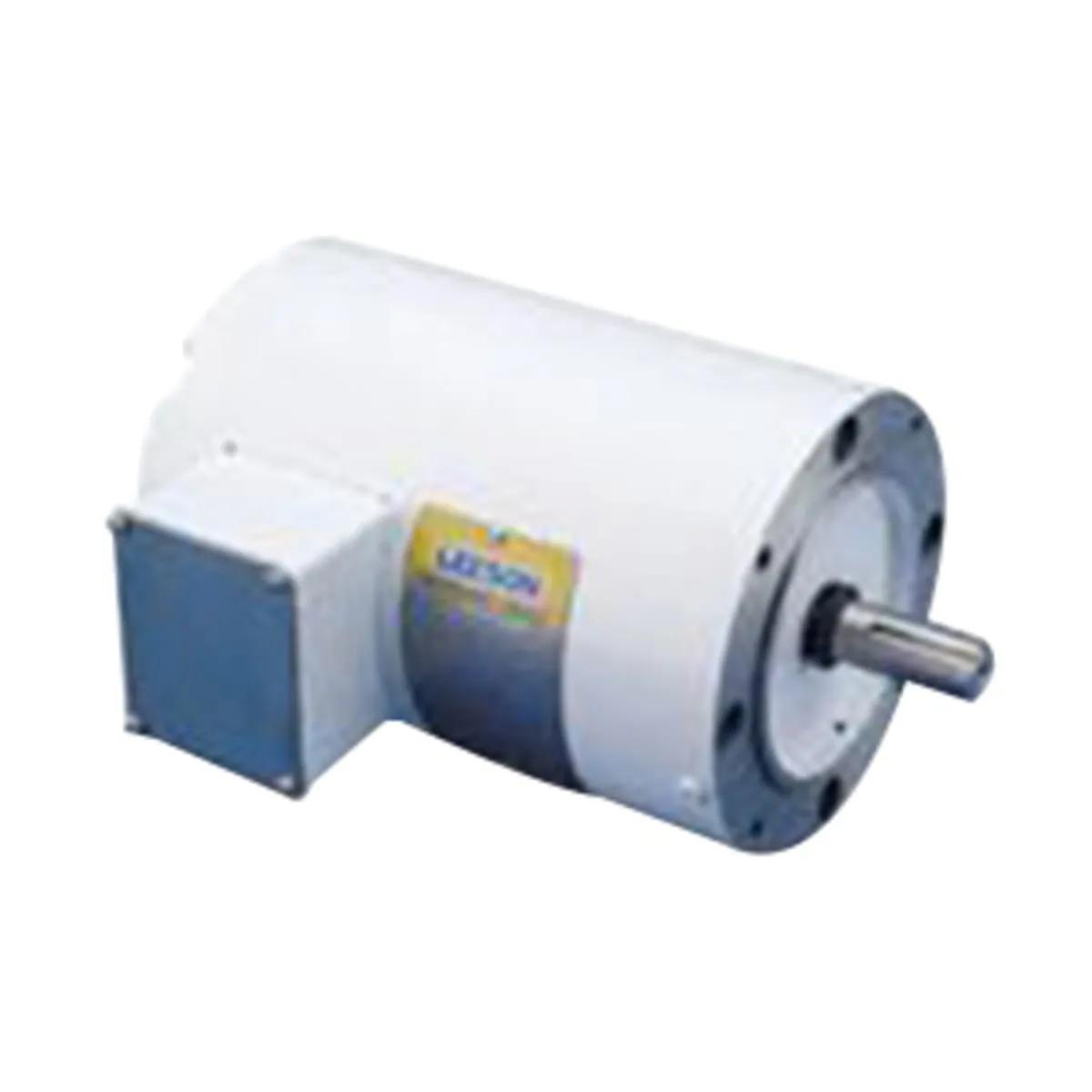

The image shown is representative of the product family and may not specifically be the individual item.
0

Leeson 113917 AC Motor, 1/2 HP, 3000 rpm, 110/220V, 56 Frame, TEFC, Rigid Base Mount

  • MFR #LE-110/220-RGB-TEFC-ACM
  • EIS #MOT113917
  • UPC #00069172001282
$247.63 / each
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
PROP_65_CANCER
WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Leeson 220V 1-Phase Rigid Base Mount Totally Enclosed Fan-Cooled Enclosure Selective Counter-Clockwise AC Motor Leeson 220V 1-Phase Rigid Base Mount Totally Enclosed Fan-Cooled Enclosure Selective Counter-Clockwise AC Motor

General Information

Item NameAC Motor
Trade NameLeeson

General Features

TypeCF
StandardsUL Listed, CSA Certified
Net Weight30 lb

Design & Construction

Bearing TypeBall
ConstructionRolled Steel
DutyContinous
Enclosure TypeTotally Enclosed Fan-Cooled
Frame Type56
Insulation TypeClass B
KVA CodeK
Mounting TypeRigid Base
RotationSelective Counter-Clockwise
Shaft PositionHorizontal

Performance Details

Speed Rating3000 rpm
Full Load Efficiency69.7%
1/2 Load Efficiency61%
Overload ProtectorNo
3/4 Load Efficiency67.1%
Torque Rating14.4 oz-ft

Electrical Properties

Frequency Rating50
Full Load Ampere7.6 A
Full Load Power Factor71%
1/2 Load Power Factor51.3%
HP Rating0.5 HP
Locked Rotor Ampere19 A
Phase1-Phase
Service Factor1
3/4 Load Power Factor62.3%
Voltage Rating220 V

Physical Properties

Dimensions11.48 Inch L x 8.37 Inch H
Number of Poles2
Shaft Diameter0.63 Inch
Shaft Length1.94 Inch
Weight30 lb
Frame Size56

Environmental Condition

Thermal ProtectionYes
Temperature Rating40 °C
