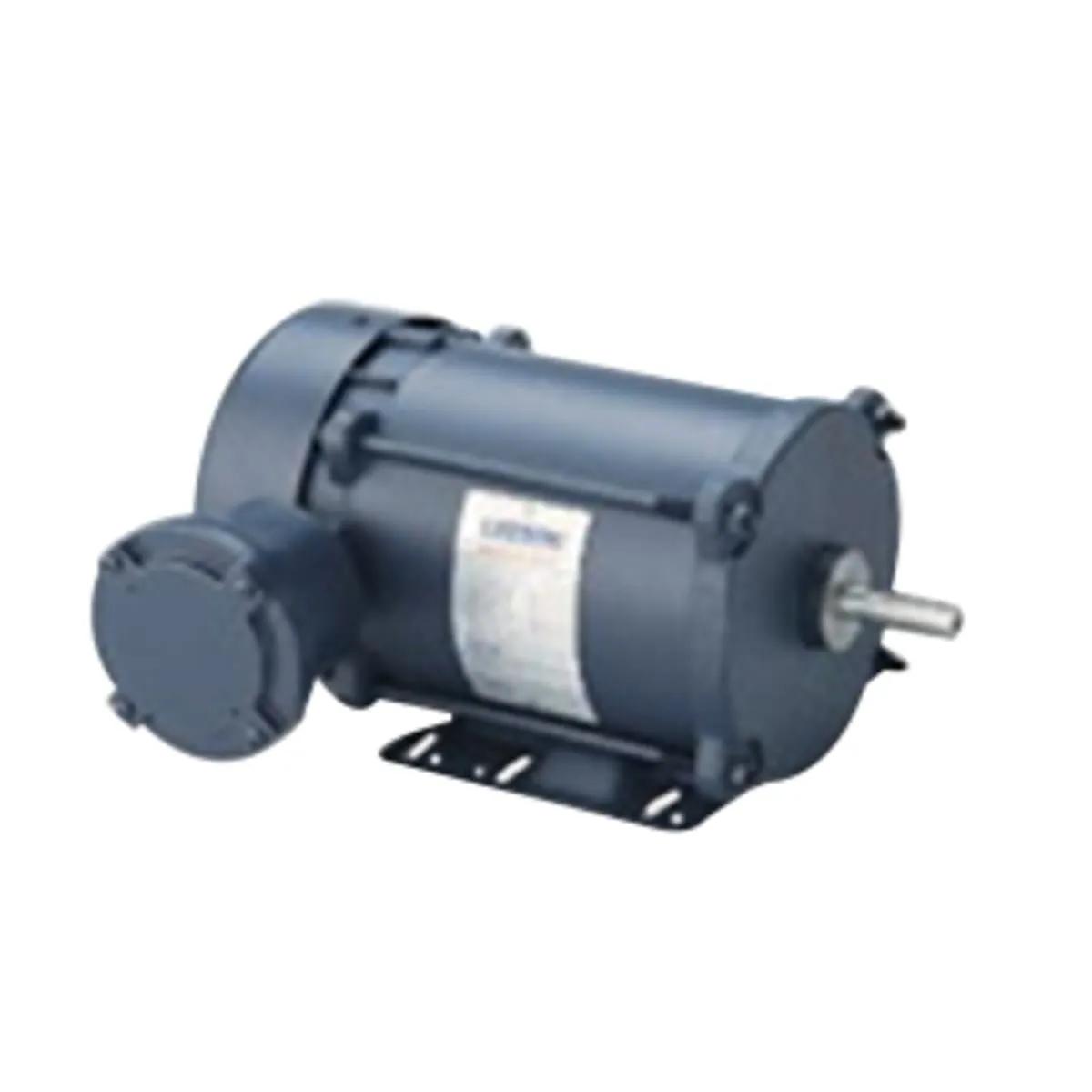

Leeson 220V 1-Phase Rigid Base Mount Drip proof (DP) Enclosure Selective Counter-Clockwise AC Motor, MFR ID LE-110/220-RGB-ODP-ACM
- MFR #LE-110/220-RGB-ODP-ACM
- EIS #PH23-LE-110/220-RGB-ODP-ACM
$228.52 - $1,365.90
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--Products You May Also Like
| Stock Status | ||||
|---|---|---|---|---|
 | 1.5 HP | 3000 rpm | $ / each | |
 | 2 HP | 3000 rpm | $ / each |
Leeson 220V 1-Phase Rigid Base Mount Drip proof Enclosure Selective Counter-Clockwise AC Motor - Leeson 220V 1-Phase Rigid Base Mount Drip proof Enclosure Selective Counter-Clockwise AC Motor
General Information
| Item Name | AC Motor |
General Features
| Standards | UL Listed, CSA Certified, CE Certified |
Design & Construction
| Bearing Type | Ball |
| Construction | Rolled Steel |
| Duty | Continous |
| Enclosure Type | Dripproof |
| Insulation Type | Class B |
| Mounting Type | Rigid Base |
| Rotation | Selective Counter-Clockwise |
| Shaft Position | Horizontal |
Performance Details
| Overload Protector | No |
Electrical Properties
| Frequency Rating | 50 Hz |
| Phase | 1-Phase |
| Voltage Rating | 220 V |
Physical Properties
| Frame Size | 56 |
| Shaft Diameter | 0.625 Inch |
Environmental Condition
| Temperature Rating | 40 °C |
| Thermal Protection | Yes |
