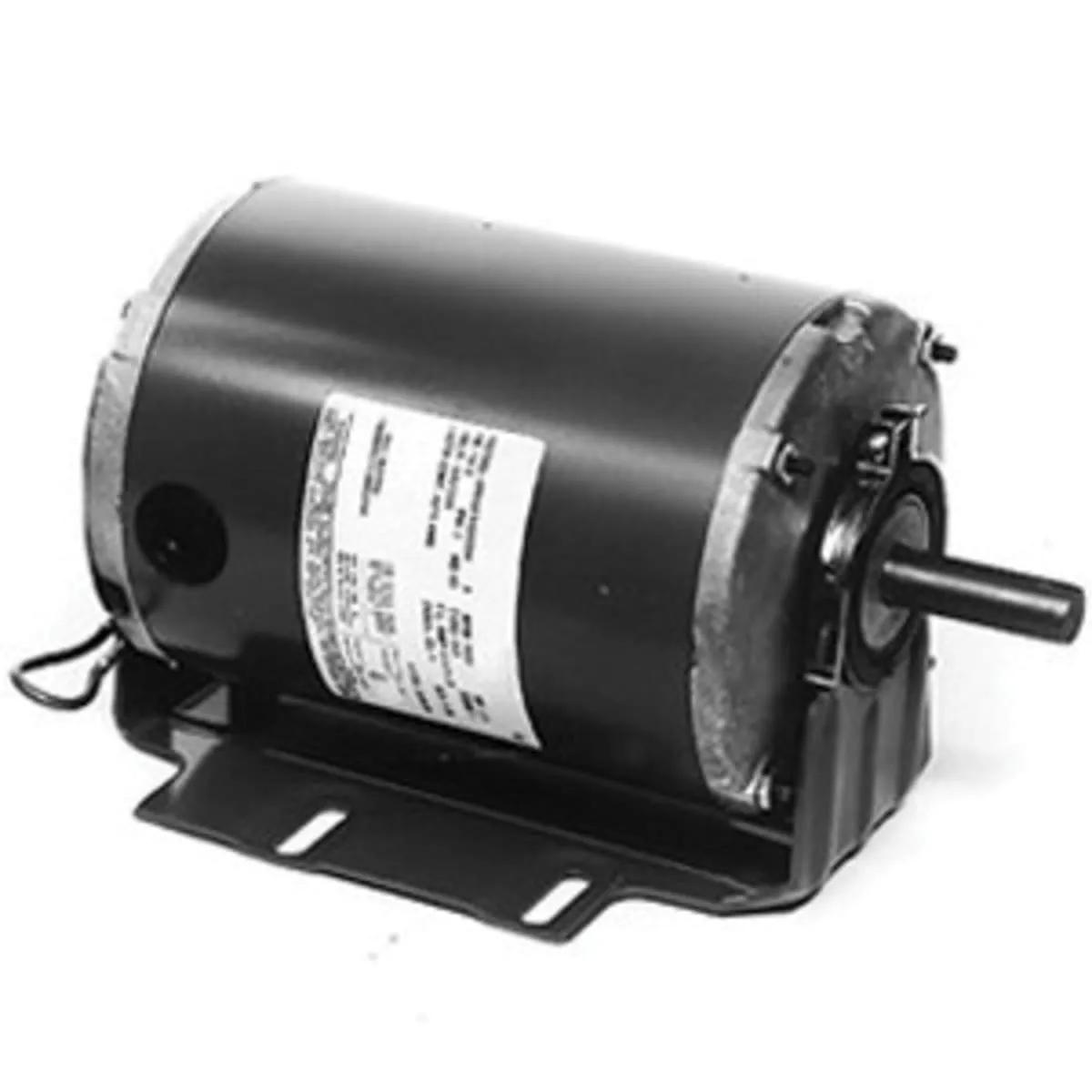

The image shown is representative of the product family and may not specifically be the individual item.
0

Leeson M900197 AC Motor, 1/2 HP, 1800 rpm, 48YZ Frame, DP, Resilient Base Mount, MFR ID M900197.00

  • MFR #M900197.00
  • EIS #MOTM900197
$570.59 / Piece
Pack: Box
Available to Order
Min QTY1QTY Increment1
more info
PackBox
PROP_65_CANCER
WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Leeson 115V 1-Phase Resilient Base Mount Drip proof Enclosure Counter-Clockwise AC Motor Leeson 115V 1-Phase Resilient Base Mount Drip proof Enclosure Counter-Clockwise AC Motor. Various voltages and mounting types available, Single and three phase fan duty motors, Rigid base, resilient base, pedestal base, belly band mount and extended thru-bolt mount types, Drip-Proof, TEFC, TEAO and DPAO designs, General purpose duty

General Information

Item NameAC Motor
Trade NameLeeson

General Features

StandardsUL Listed, CSA Certified
Net Weight19. lb

Design & Construction

Bearing TypeBall
DutyContinous
Enclosure TypeDripproof
Frame Type48YZ
Insulation TypeClass B
KVA CodeL
Mounting TypeResilient Base
RotationCounter-Clockwise
Shaft PositionHorizontal

Performance Details

Full Load Efficiency66%
Torque Rating24.3 oz-ft

Electrical Properties

Frequency Rating60
Full Load Ampere7.2 A
Full Load Power Factor71.5%
HP Rating0.5 HP
Phase1-Phase
Service Factor1.25

Physical Properties

Dimensions10.72 Inch L x 5.62 Inch W x 5.84 Inch H
Frame Size48
Number of Poles4
Shaft Diameter0.5 Inch
Shaft Length1.97 Inch
Weight19 lb

Environmental Condition

Thermal ProtectionYes
