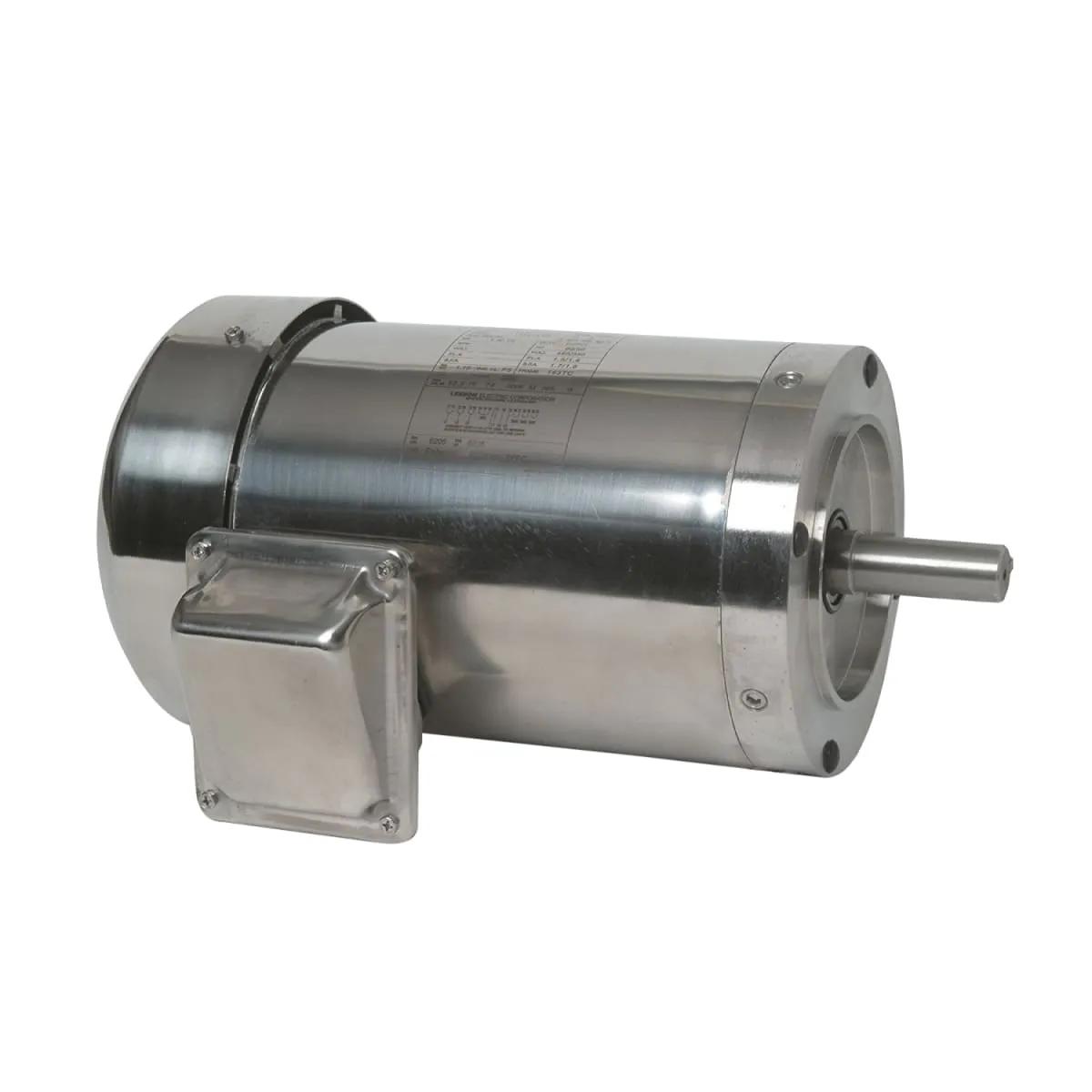

Leeson Premium StainlessDuck AC Motor, 1-1/2 HP, 1800 rpm, 115/208 - 230V, 145TC Frame, TEFC, C-Face Less Base Mount, MFR ID 121624
- EIS #MOT121624
$2,057.49 / Piece
Available to Order
Min QTY1QTY Increment1
more info
Products You May Also Like
Leeson Washguard® 230V 1-Phase Round, C-Face Less Base Mount Totally Enclosed Fan-Cooled Enclosure Selective Counter-Clockwise AC Motor
Leeson 230V 1-Phase Round, C-Face Less Base Mount Totally Enclosed Fan-Cooled Enclosure Selective Counter-Clockwise AC Motor. USDA-approved epoxy painted motors, 3-year warranty on encapsulated and Premium efficient models, Wash-down brakemotors and pump motors available, Stainless steel motors, Encapsulated stainless steel motors available
Features
- USDA-approved epoxy painted motors
- 3-year warranty on encapsulated and Premium efficient models
- Wash-down brakemotors and pump motors available
- Stainless steel motors
- Encapsulated stainless steel motors available
- NEMA and IEC flange motors
- Three phase, single phase and DC wash-down duty motors
- AC and DC wash-down gearmotors
- Rigid base and C face mount types
- BISSC approved designs
- Double lip contact seals and v-ring seals used for shaft seals
- Temperature Rating: 40 °C Ambient
- Full Load Ampere: 14.8A at 115V, 7.8 - 7.4A at 208 - 230V
- Voltage Rating: 115/208 - 230V
Applications
- Designed To Meet The Demanding Wash down Conditions That You May Find In Food Processing Plants, Chemical Processing, Pharmaceutical Plants And The Beverage And Brewing Industries
General Information
| Item Name | AC Motor |
| Trade Name | Leeson |
General Features
| Type | KF |
| Standards | UL Listed, CSA Certified |
| Net Weight | 53 lb |
Design & Construction
| Bearing Type | Ball |
| Construction | Stainless Steel |
| Duty | Continous |
| Enclosure Type | Totally Enclosed Fan-Cooled |
| Frame Type | 145TC |
| Insulation Type | Class F |
| KVA Code | J |
| Mounting Type | Round, C-Face Less Base |
| Rotation | Selective Counter-Clockwise |
| Seal Type | Dual Lip |
| Shaft Position | Horizontal |
Performance Details
| Speed Rating | 1800 rpm |
| Full Load Efficiency | 80% |
| 1/2 Load Efficiency | 68% |
| 3/4 Load Efficiency | 79.4% |
Electrical Properties
| Frequency Rating | 60 |
| Full Load Ampere | 14.8 A |
| Full Load Power Factor | 82% |
| 1/2 Load Power Factor | 82.7% |
| HP Rating | 1.5 HP |
| Phase | 1-Phase |
| Service Factor | 1.15 |
| 3/4 Load Power Factor | 84.5% |
Physical Properties
| Dimensions | 14.87 Inch L |
| Frame Size | 145 |
| Number of Poles | 4 |
| Shaft Diameter | 0.875 Inch |
| Shaft Length | 2.12 Inch |
| Weight | 53 lb |
Environmental Condition
| Degree of Protection | IP56 |
