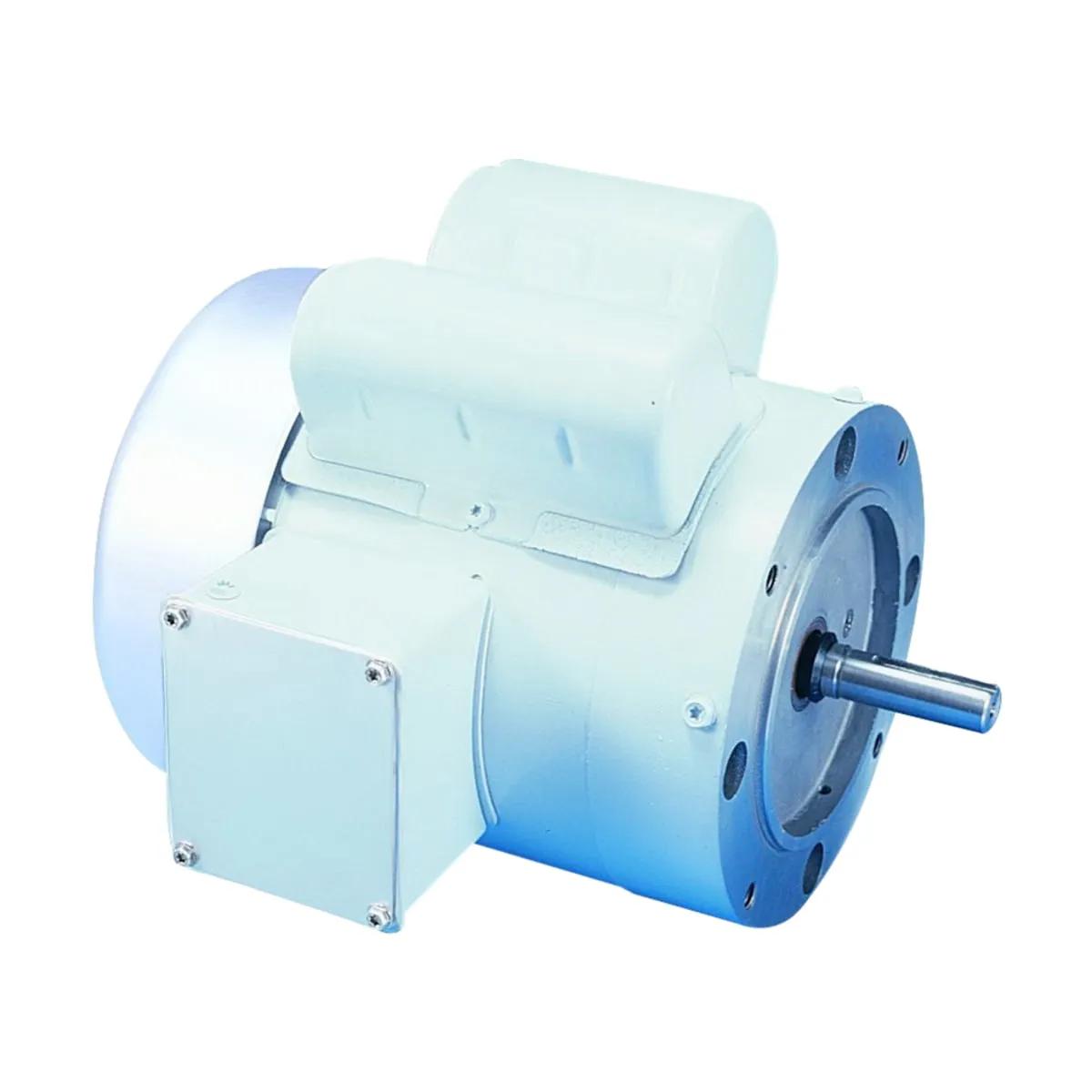

Leeson WhiteDuck AC Motor, 1/2 HP, 3600 rpm, 115/208 - 230V, 56C Frame, TEFC, C-Face Less Base Mount, MFR ID 114312
- MFR #114312.00
- EIS #MOT114312
$322.82 / each
Available to Order
Min QTY1QTY Increment1
more info
Products You May Also Like
Leeson Washguard® 230V 1-Phase Round, C-Face Less Base Mount Totally Enclosed Fan-Cooled Enclosure Selective Counter-Clockwise AC Motor
Leeson 230V 1-Phase Round, C-Face Less Base Mount Totally Enclosed Fan-Cooled Enclosure Selective Counter-Clockwise AC Motor. USDA-approved epoxy painted motors, 3-year warranty on encapsulated and Premium efficient models, Wash-down brakemotors and pump motors available, Stainless steel motors, Encapsulated stainless steel motors available
Features
- USDA-approved epoxy painted motors
- 3-year warranty on encapsulated and Premium efficient models
- Wash-down brakemotors and pump motors available
- Stainless steel motors
- Encapsulated stainless steel motors available
- NEMA and IEC flange motors
- Three phase, single phase and DC wash-down duty motors
- AC and DC wash-down gearmotors
- Rigid base and C face mount types
- BISSC approved designs
- Double lip contact seals and v-ring seals used for shaft seals
- Temperature Rating: 40 °C Ambient
- Full Load Ampere: 7.6A at 115V, 4 - 3.8A at 208 - 230V
- Torque Rating: 12.09 oz-ft (Full Load), 32 oz-ft (Break Down), 32 oz-ft (Pull Up) 45 oz-ft (Locked Rotor)
- Voltage Rating: 115/208 - 230V
Applications
- Designed To Meet The Demanding Wash down Conditions That You May Find In Food Processing Plants, Chemical Processing, Pharmaceutical Plants And The Beverage And Brewing Industries
General Information
| Item Name | AC Motor |
| Trade Name | Leeson |
General Features
| Type | CF |
| Standards | UL Listed, CSA Certified |
| Net Weight | 28 lb |
Design & Construction
| Bearing Type | Ball |
| Construction | Stainless Steel |
| Duty | Continous |
| Enclosure Type | Totally Enclosed Fan-Cooled |
| Frame Type | 56C |
| Insulation Type | Class F |
| KVA Code | M |
| Mounting Type | Round, C-Face Less Base |
| Rotation | Selective Counter-Clockwise |
| Seal Type | Viton® |
| Shaft Position | Horizontal |
| Start Method | Across The Line |
Performance Details
| Speed Rating | 3600 rpm |
| Full Load Efficiency | 63% |
| 1/2 Load Efficiency | 51.1% |
| 3/4 Load Efficiency | 59.3% |
| Torque Rating | 12.09 oz-ft |
Electrical Properties
| Frequency Rating | 60 |
| Full Load Ampere | 7.6 A |
| Full Load Power Factor | 70% |
| 1/2 Load Power Factor | 51.6% |
| HP Rating | 0.5 HP |
| Phase | 1-Phase |
| Service Factor | 1.15 |
| 3/4 Load Power Factor | 61.6% |
Physical Properties
| Dimensions | 10.69 Inch L |
| Frame Size | 56 |
| Number of Poles | 2 |
| Shaft Diameter | 0.625 Inch |
| Shaft Length | 2.06 Inch |
| Weight | 28 lb |
Environmental Condition
| Degree of Protection | IP55 |
