Leeson 174940 Adjustable AC Inverter Drive, 400 - 480V, 4.7/4.1A Nominal Input, 0 - 400/460VAC, 3.4A Output

The image shown is representative of the product family and may not specifically be the individual item.
  • MFR #:W-Micro-174510
  • EIS #:MOT174940
  • Series #:W-Micro-174510
  • MFR #:W-Micro-174510
  • EIS #:MOT174940
  • Series #:W-Micro-174510
Available to Order

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
Leeson Electric Washguard® Micro Series Adjustable AC Inverter Drive, Analog Output: 0-10VDC/2-10VDC Proportional To Speed Or Load, Rugged, Heavy-Gauge Steel Enclosure, Digital Output: Form C Relay: 2A at 28VDC/120VAC, Open-Collector Outputs: 40mA at 30VDC, LCD Display, >97% Efficiency, 50/60 Hz Input, 0 - 120 Hz Output, 3-Phase Input/Output. Two auxiliary contacts. one form C relay and two open collector output. Slip compensation. Adjustable carrier frequency. Adjustable acceleration and deceleration times. DC braking-time and voltage adjustable. Constant torque-with adjustable current limit.
$2,941.14 / each

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
Leeson Electric Washguard® Micro Series Adjustable AC Inverter Drive, Analog Output: 0-10VDC/2-10VDC Proportional To Speed Or Load, Rugged, Heavy-Gauge Steel Enclosure, Digital Output: Form C Relay: 2A at 28VDC/120VAC, Open-Collector Outputs: 40mA at 30VDC, LCD Display, >97% Efficiency, 50/60 Hz Input, 0 - 120 Hz Output, 3-Phase Input/Output. Two auxiliary contacts. one form C relay and two open collector output. Slip compensation. Adjustable carrier frequency. Adjustable acceleration and deceleration times. DC braking-time and voltage adjustable. Constant torque-with adjustable current limit.

Product Options

Showing 8 out of 18 options

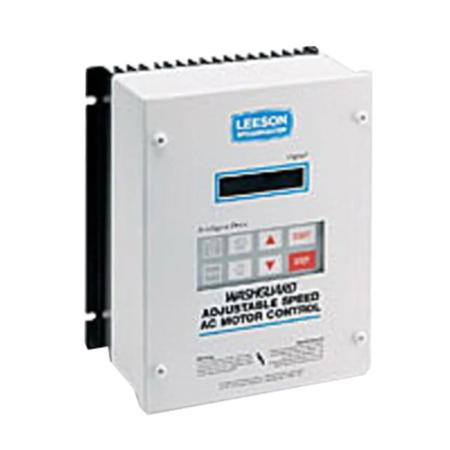

The image shown is representative of the product family and may not specifically be the individual item.
Input Voltage:
400 V
HP Rating:
5 HP
Enclosure Type:
NEMA 4, 12
EIS Part #:
MOT174942
$ / each
The image shown is representative of the product family and may not specifically be the individual item.
Input Voltage:
400 V
HP Rating:
3 HP
Enclosure Type:
NEMA 4, 12
EIS Part #:
MOT174941
$ / each
The image shown is representative of the product family and may not specifically be the individual item.
Input Voltage:
400 V
HP Rating:
2 HP
Enclosure Type:
NEMA 4, 12
EIS Part #:
MOT174940
$ / each
The image shown is representative of the product family and may not specifically be the individual item.
Input Voltage:
400 V
HP Rating:
1 HP
Enclosure Type:
NEMA 4, 12
EIS Part #:
MOT174939
$ / each
The image shown is representative of the product family and may not specifically be the individual item.
Input Voltage:
200 V
HP Rating:
3 HP
Enclosure Type:
NEMA 4, 12
EIS Part #:
MOT174938
$ / each
The image shown is representative of the product family and may not specifically be the individual item.
Input Voltage:
200 V
HP Rating:
2 HP
Enclosure Type:
NEMA 4, 12
EIS Part #:
MOT174937
$ / each
The image shown is representative of the product family and may not specifically be the individual item.
Input Voltage:
200 V
HP Rating:
1 HP
Enclosure Type:
NEMA 4, 12
EIS Part #:
MOT174936
$ / each
The image shown is representative of the product family and may not specifically be the individual item.
Input Voltage:
200 V
HP Rating:
0.5 HP
Enclosure Type:
NEMA 4, 12
EIS Part #:
MOT174935
$ / each

Attributes

General Information

Item NameAC Inverter Drive
Trade NameLeeson

SeriesW-Micro-174510

General Features

Net Weight10 lb
StandardsUL Listed, cUL Certified, CE Certified
Storage Temperature-20 to 70 deg C
TypeAdjustable

Design & Construction

ConstructionRugged, Heavy-Gauge Steel Enclosure
DisplayLCD
Enclosure TypeNEMA 4, 12

Performance Details

Efficiency>97%

Electrical Properties

Analog Output0 - 10VDC/2 - 10VDC Proportional to Speed or Load
Digital Output2
HP Rating2 HP
Input Current4.7 A
Input Frequency50
Input Voltage400 V
Output Frequency120
Output Voltage400 VAC
Phase3-Phase
Rated Output Capacity2.7 kVA

Physical Properties

Dimensions7.86 Inch W x 4.9 Inch D x 7.88 Inch H

Environmental Condition

Temperature Rating40 °C
