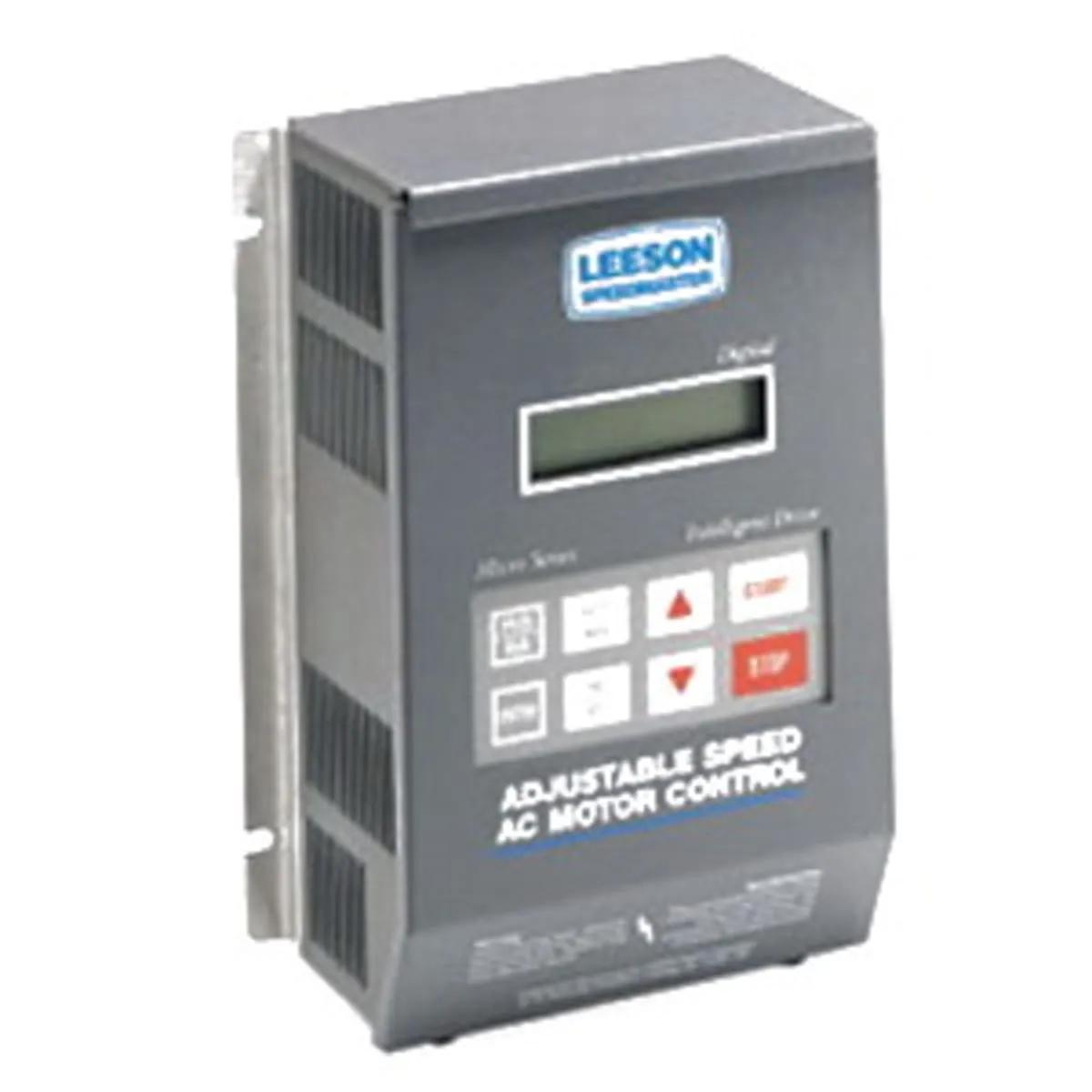

Leeson Micro Series Adjustable AC Inverter Drive
- MFR #Micro Series
- EIS #PH23-Micro Series
- Series #Micro Series
$728.88 - $14,830.82
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--Products You May Also Like
| Stock Status | |||||
|---|---|---|---|---|---|
 | 12.5 A | 480 V | 10 HP | $ / each | |
| 70 A | 200 V | 20 HP | $ / each | |
| 55 A | 200 V | 15 HP | $ / each | |
| 68 A | 400 V | 40 HP | $ / each | |
| 25 A | 480 V | 20 HP | $ / each | |
| 104 A | 200 V | 30 HP | $ / each |
Leeson Electric Micro Series Adjustable AC Inverter Drive has two auxiliary contacts one form C relay and two open collector output. Features rugged, heavy-gauge steel enclosures with barrier type terminal strips. - Leeson Electric Micro Series Adjustable AC Inverter Drive, Analog Output: 0-10VDC/2-10VDC Proportional To Speed Or Load, Rugged, Heavy-Gauge Steel Enclosure, Digital Output: Form C Relay: 2A at 28VDC/120VAC, Open-Collector Outputs: 40mA at 30VDC, LCD Display, >97% Efficiency, NEMA 1 Enclosure, 0 - 120 Hz Output.
Features
- Disc symbol A
- Two auxiliary contacts: one form C relay and two open collector output
- Slip compensation
- Adjustable carrier frequency
- Adjustable acceleration and deceleration times
- Forward/reverse
- DC braking-time and voltage adjustable
- Constant torque-with adjustable current limit
- Rugged, heavy-gauge steel enclosures with barrier type terminal strips
- Less than 95% ambient humidity
- Digital Output: Form C Relay: 2A at 28VDC/120VAC, Open-Collector Outputs: 40mA at 30VDC
General Information
| Item Name | AC Inverter Drive |
| Series | Micro Series |
General Features
| Standards | UL Listed, cUL Certified, CE Certified |
| Storage Temperature | -20 to 70 °C |
| Type | Adjustable |
Design & Construction
| Construction | Rugged, Heavy-Gauge Steel Enclosure |
| Display | LCD |
| Enclosure Type | NEMA 1 |
Performance Details
| Efficiency | >97% |
Electrical Properties
| Analog Output | 0 - 10VDC/2 - 10VDC Proportional to Speed or Load |
| Digital Output | 2 A |
| Output Frequency | 120 Hz |
