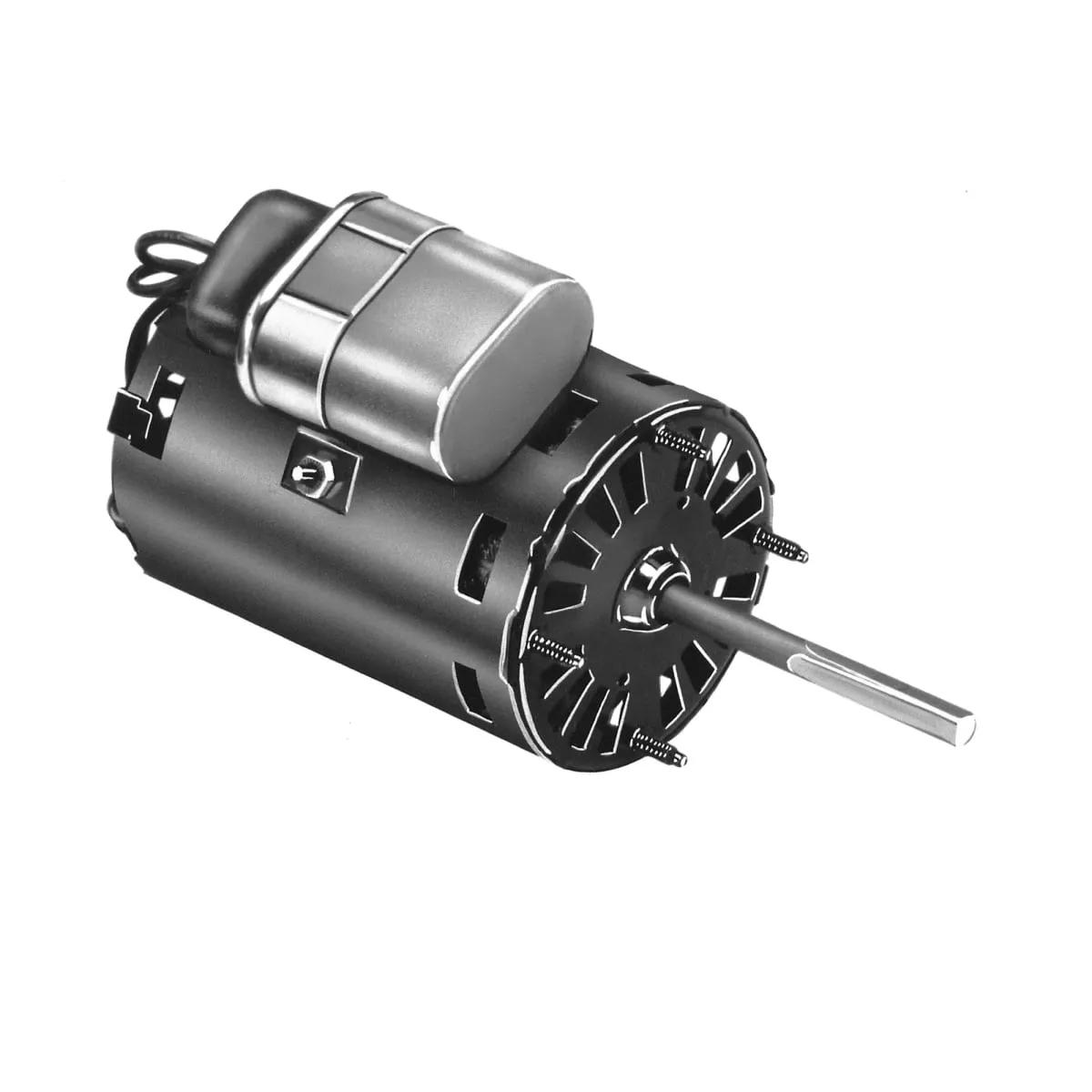

Fasco D257 5" Dia Fan Coil Air-Conditioning And Heating Unit Motor, 1/15 - 1/20 - 1/25 HP, 1050 rpm, Totally Enclosed
- EIS #MOTD1186
$287.82 / Piece
Available to Order
Min QTY1QTY Increment1
more info
Fasco D257 5 Inch Dia Fan Coil Air-Conditioning And Heating Unit Motor. - Fasco D257 Shaded Pole 5 Inch Dia Fan Coil Air-Conditioning And Heating Unit Motor, Sleeve Bearing, 3.25 Inch L, Totally Enclosed Enclosure, 1.1 - 0.7 - 0.6A Full Load, 1/15 - 1/20 - 1/25 HP, Dual Shaft Rotation, 0.5 Inch Shaft Dia, 9 Inch Shaft Length, Horizontal Shaft, 1050 rpm, 277V.
Features
- 3 speeds
- Full load ampere: 1.1 - 0.7 - 0.6A
- HP rating: 1/15 - 1/20 - 1/25 HP
Applications
- For Air Moving - Furnace Fans, Air Handlers, Blowers, Air Conditioners, Exhaust Fans, Commercial Refrigeration - Walk-In Coolers, Beverage Coolers, Display Cases
General Information
| Item Name | 5 Inch Dia Fan Coil Air-Conditioning and Heating Unit Motor |
| Series | FA277VTESP5IDFCA-CAHUM |
General Features
| Type | Shaded Pole |
Design & Construction
| Bearing Type | Sleeve |
| Enclosure Type | Totally Enclosed |
| Rotation | Clockwise Shaft End |
| Shaft Position | Horizontal |
Performance Details
| Speed Rating | 1050 rpm |
Electrical Properties
| Full Load Ampere | 0.7 A |
| HP Rating | 0.06 HP |
| Voltage Rating | 277 V |
Physical Properties
| Dimensions | 3.25 Inch L |
| Shaft Diameter | 0.5 Inch |
| Shaft Length | 9 Inch |
Documents
No Documents Found
