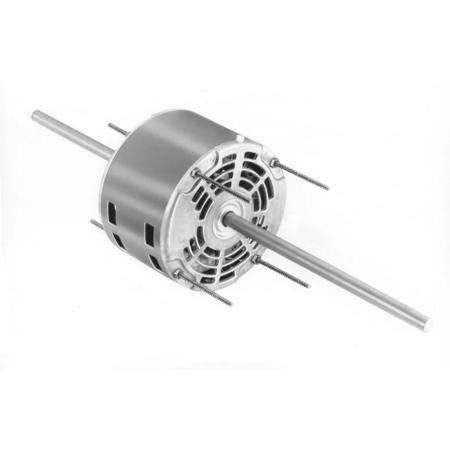

Fasco D761 5.6" Dia Window Air Conditioner Motor, 1/2 - 1/3 - 1/4 HP, 1075 rpm, 48 Frame, Open Ventilated
MFR #:FA115VOV5.6IDWACM
EIS #:MOTD761
MFR #:FA115VOV5.6IDWACM
EIS #:MOTD761
Available to Order
Min Qty:1
|Qty Increment:1
Fasco 5.6 Inch Dia Window Air Conditioner Motor. - Fasco 5.6 Inch Dia Window Air Conditioner Motor, Sleeve Bearing, Open Ventilated Enclosure, 48 Frame, Dual Shaft Rotation, 0.5 Inch Shaft Dia, Horizontal Shaft, 1075 rpm, Start Method: Permanent Split Capacitor, 115V.
$268.58 / Piece
Min Qty:1
|Qty Increment:1
Fasco 5.6 Inch Dia Window Air Conditioner Motor. - Fasco 5.6 Inch Dia Window Air Conditioner Motor, Sleeve Bearing, Open Ventilated Enclosure, 48 Frame, Dual Shaft Rotation, 0.5 Inch Shaft Dia, Horizontal Shaft, 1075 rpm, Start Method: Permanent Split Capacitor, 115V.
Product Options
Showing 3 out of 3 options
 | HP Rating: 0.5 HP | EIS Part #: MOTD761 | $ / Piece | |
| HP Rating: 0.33 HP | EIS Part #: MOTD757 | $ / Piece | |
| HP Rating: 0.125 HP | EIS Part #: MOTD751 | $ / Piece |
- Attributes
- Features
- Applications
Attributes
General Information
Item Name5.6 Inch Dia Window Air Conditioner Motor
SeriesFA115VOV5.6IDWACM
Design & Construction
Bearing TypeSleeve
Enclosure TypeOpen
RotationClockwise Shaft End
Shaft PositionHorizontal
Start MethodPermanent Split Capacitor
Performance Details
Speed Rating1075 rpm
Electrical Properties
Full Load Ampere4.4 A
HP Rating0.5 HP
Voltage Rating115 V
Physical Properties
Dimensions5.25 Inch L
Shaft Length8 Inch
Frame Size48
Shaft Diameter0.5 Inch
Features
- 3 speeds
- Full load ampere: 9.6 - 6 - 4.4A
- HP rating: 1/2 - 1/3 - 1/4 HP
Applications
- For Air Moving - Furnace Fans, Air Handlers, Blowers, Air Conditioners, Exhaust Fans, Commercial Refrigeration - Walk-In Coolers, Beverage Coolers, Display Cases
