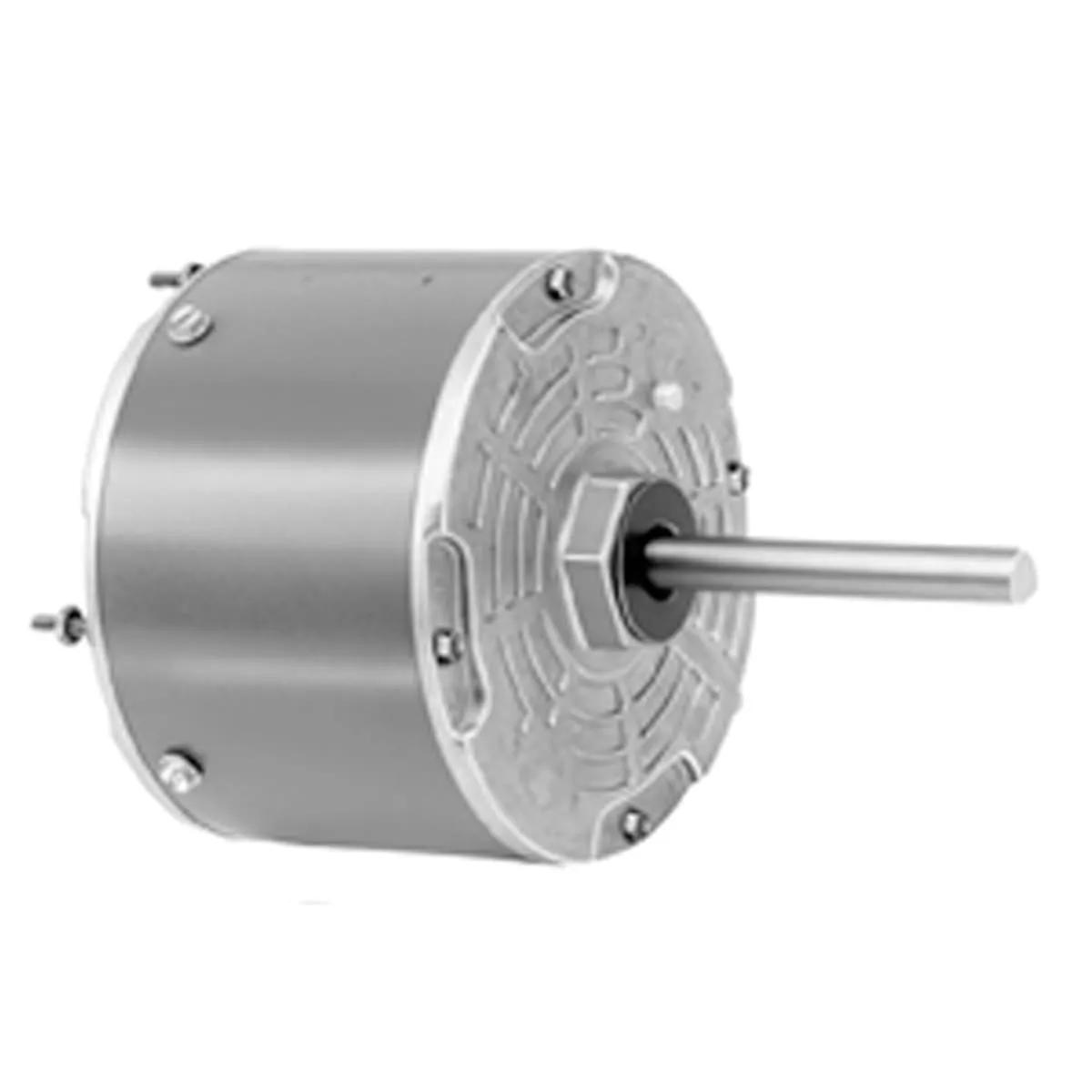

Fasco D2834 5.6" Dia Motor, 1/3 HP, 1075 rpm, 48 Frame, Totally Enclosed
- MFR #FA208-230VTE5.6IDM
- EIS #MOTD2834
$178.27 / Piece
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
| Stock Status | |||||
|---|---|---|---|---|---|
 | 2 A | 0.33 HP | 1075 rpm | $ / Piece | |
| 1.3 A | 0.2 HP | 1075 rpm | $ / Piece | |
 | 2.2 A | 0.33 HP | 1075 rpm | $ / Piece |
Fasco 208 - 230V Totally Enclosed 5.6 Inch Dia Motor - Fasco 208 - 230V 1 Speed Totally Enclosed 5.6 Inch Dia Motor
Features
- Voltage Rating: 208 - 230V
Applications
- For Air Moving - Furnace Fans, Air Handlers, Blowers, Air Conditioners, Exhaust Fans, Commercial Refrigeration - Walk-In Coolers, Beverage Coolers, Display Cases
General Information
| Item Name | 5.6 Inch Dia Motor |
| Series | FA208-230VTE5.6IDM |
Design & Construction
| Bearing Type | Sleeve |
| Enclosure Type | Totally Enclosed |
| Rotation | Clockwise |
| Shaft Position | Horizontal |
| Start Method | Permanent Split Capacitor |
Performance Details
| Speed Rating | 1075 rpm |
Electrical Properties
| Full Load Ampere | 2 A |
| HP Rating | 0.33 HP |
| Voltage Rating | 230 V |
Physical Properties
| Dimensions | 4 Inch L |
| Shaft Length | 4.25 Inch |
| Frame Size | 48 |
| Shaft Diameter | 0.5 Inch |
