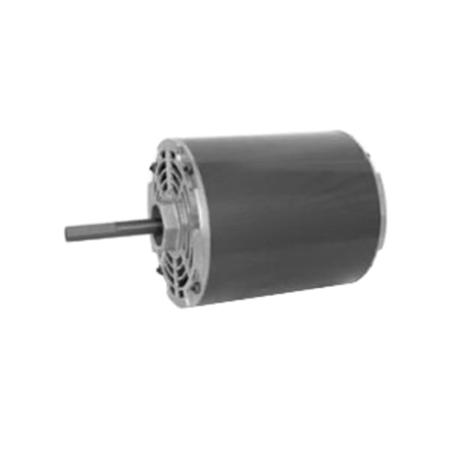

Fasco D2850 5.6" Dia Motor, 1 - 3/4 HP, 1125/950 rpm, Open Ventilated
MFR #:FA208-230/460V200/380-415VOV5.6IDM
EIS #:MOTD2850
MFR #:FA208-230/460V200/380-415VOV5.6IDM
EIS #:MOTD2850
Available to Order
Min Qty:1
|Qty Increment:1
Fasco Horizontal Shaft 5.6 Inch Dia Motor. - Fasco 5.6 Inch Dia Motor, Ball Bearing, 6.5 Inch L, Open Ventilated Enclosure, 50/60 Hz, 4.6/2.3A Full Load, 1 - 3/4 HP, Clockwise Rotation, Horizontal Shaft, 1125/950 rpm, Start Method: Permanent Split Capacitor, 208 - 230/460V, 200/380 - 415V.
$755.12 / Piece
Min Qty:1
|Qty Increment:1
Fasco Horizontal Shaft 5.6 Inch Dia Motor. - Fasco 5.6 Inch Dia Motor, Ball Bearing, 6.5 Inch L, Open Ventilated Enclosure, 50/60 Hz, 4.6/2.3A Full Load, 1 - 3/4 HP, Clockwise Rotation, Horizontal Shaft, 1125/950 rpm, Start Method: Permanent Split Capacitor, 208 - 230/460V, 200/380 - 415V.
Product Options
Showing 1 out of 1 options
 | Shaft Diameter: 0.5 Inch | EIS Part #: MOTD2850 | $ / Piece |
- Attributes
- Features
- Applications
Attributes
General Information
Item Name5.6 Inch Dia Motor
SeriesFA208-230/460V200/380-415VOV5.6IDM
Design & Construction
Bearing TypeBall
Enclosure TypeOpen
RotationClockwise
Shaft PositionHorizontal
Start MethodPermanent Split Capacitor
Performance Details
Speed Rating950 rpm
Electrical Properties
Frequency Rating50 Hz
Full Load Ampere4.6 A
HP Rating1 HP
Voltage Rating415 V
Physical Properties
Shaft Diameter0.5 Inch
Shaft Length3.45 Inch
Dimensions6.5 Inch L
Features
- 1 speed
- Frequency Rating: 50/60 Hz
- Full load ampere: 4.6/2.3A
- HP Rating: 1 - 3/4 HP
- Speed Rating: 1125/950 rpm
- Voltage Rating: 208 - 230/460V, 200/380 - 415V
Applications
- For Air Moving - Furnace Fans, Air Handlers, Blowers, Air Conditioners, Exhaust Fans, Commercial Refrigeration - Walk-In Coolers, Beverage Coolers, Display Cases
