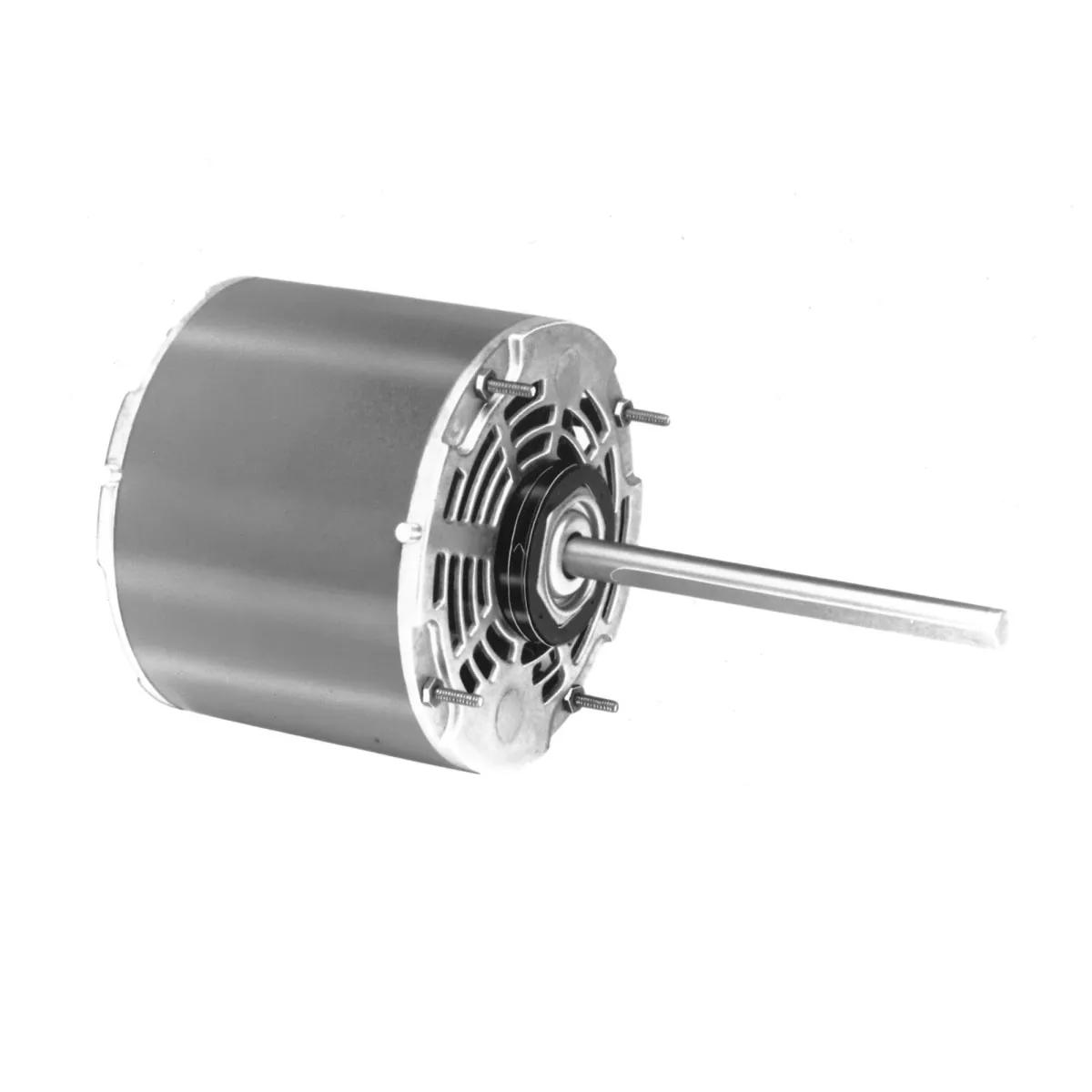

Fasco D927 5.6" Dia Direct Drive Blower Motor, 1/6 - 1/8 - 1/10 HP, 1075 rpm, 48 Frame, Open Ventilated
- MFR #FA208-230VOV3-S5.6IDDDBM
- EIS #MOTD927
$173.40 / Piece
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Products You May Also Like
| Stock Status | ||||
|---|---|---|---|---|
 | 1.2 A | 0.25 HP | $ / Piece | |
| 3.7 A | 0.5 HP | $ / Piece | |
 | 1.8 A | 0.33 HP | $ / Piece | |
 | 0.5 A | 0.16 HP | $ / Piece |
Fasco Permanent Split Capacitor Start 5.6 Inch Dia Direct Drive Blower Motor. - Fasco 5.6 Inch Dia Direct Drive Blower Motor, Sleeve Bearing, Open Ventilated Enclosure, Reversible Rotation, 0.5 Inch Shaft Dia, Horizontal Shaft, 1075 rpm, Start Method: Permanent Split Capacitor, 208 - 230V.
Features
- 3 speeds
- Voltage Rating: 208 - 230V
- Full load ampere: 1.4 - 0.9 - 0.5A
- HP rating: 1/6 - 1/8 - 1/10 HP
Applications
- For Air Moving - Furnace Fans, Air Handlers, Blowers, Air Conditioners, Exhaust Fans, Commercial Refrigeration - Walk-In Coolers, Beverage Coolers, Display Cases
General Information
| Item Name | 5.6 Inch Dia Direct Drive Blower Motor |
| Series | FA208-230VOV3-S5.6IDDDBM |
Design & Construction
| Bearing Type | Sleeve |
| Enclosure Type | Open |
| Rotation | Reversible |
| Shaft Position | Horizontal |
| Start Method | Permanent Split Capacitor |
Performance Details
| Speed Rating | 1075 rpm |
Electrical Properties
| Frequency Rating | 60 Hz |
| Full Load Ampere | 0.5 A |
| HP Rating | 0.16 HP |
| Voltage Rating | 230 V |
Physical Properties
| Dimensions | 3.75 Inch L |
| Frame Size | 48 |
| Shaft Length | 7.5 Inch |
| Shaft Diameter | 0.5 Inch |
Documents
No Documents Found
