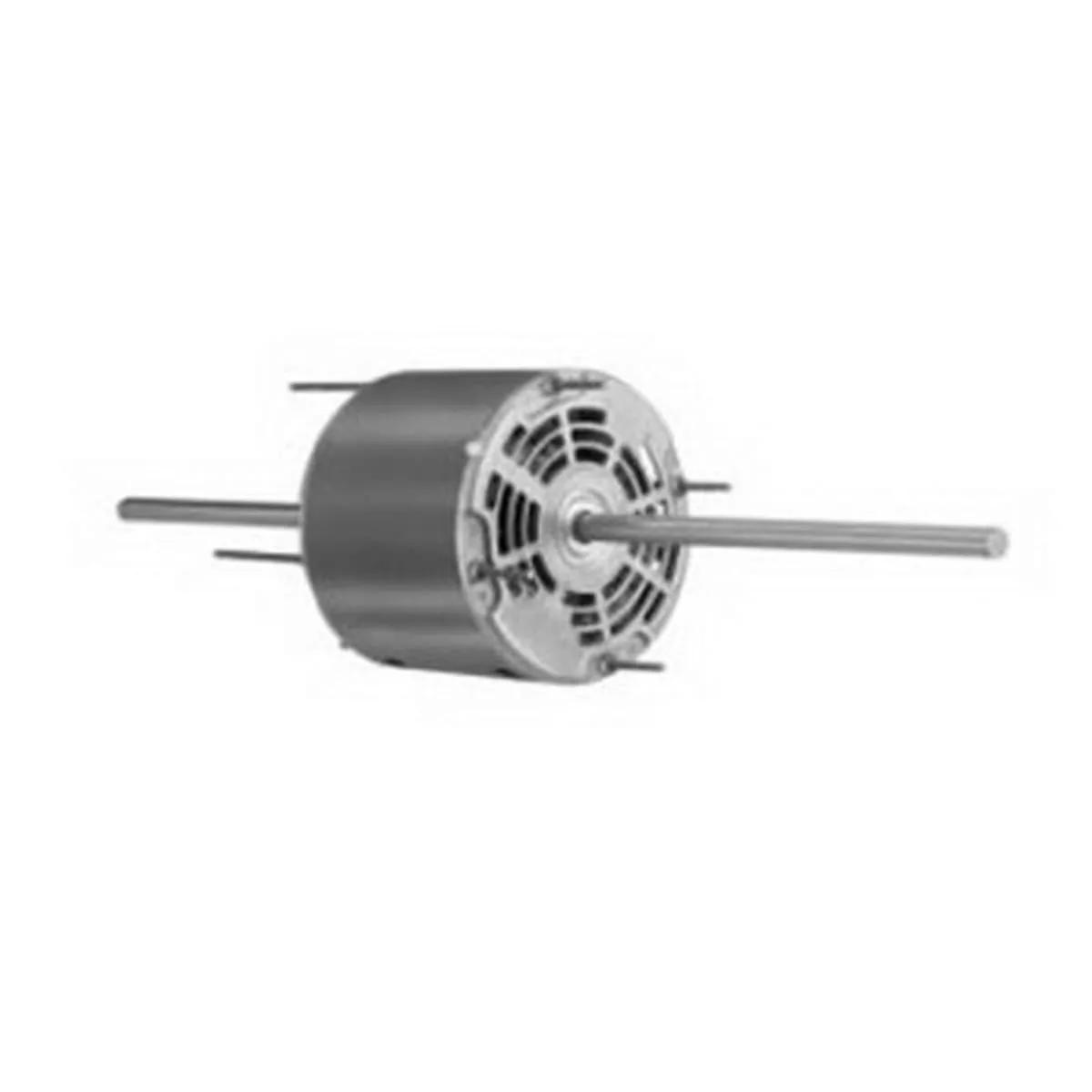

Fasco D772 5.6" Dia Condenser Fan & Direct Drive Blower Motor, 1/2 - 1/3 - 1/4 HP, 1625 rpm, 48 Frame, Open Ventilated
- MFR #FA208-230VOV5.6IDCF&DDBM
- EIS #MOTD772
$461.37 / Piece
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Products You May Also Like
| Stock Status | |||||
|---|---|---|---|---|---|
 | 0.9 A | 0.25 HP | Clockwise Shaft End | $ / Piece | |
 | 2.1 A | 0.5 HP | Clockwise Shaft End | $ / Piece | |
| 1.4 A | 0.33 HP | Clockwise Shaft End | $ / Piece | |
 | 3.2 A | 0.75 HP | Clockwise Shaft End | $ / Piece | |
 | 3.7 A | 0.5 HP | Reversible | $ / Piece | |
| 1.5 A | 0.25 HP | Reversible | $ / Piece |
Fasco 208 - 230V Open Vented 5.6 Inch Dia Condenser Fan and Direct Drive Blower Motor - Fasco 208 - 230V Open Vented 5.6 Inch Dia Condenser Fan and Direct Drive Blower Motor
Features
- 3 Speed
- Full load ampere: 3.8 - 2.8 - 2.1A
- HP rating: 1/2 - 1/3 - 1/4 HP
- Voltage Rating: 208 - 230V
Applications
- For Air Moving - Furnace Fans, Air Handlers, Blowers, Air Conditioners, Exhaust Fans, Commercial Refrigeration - Walk-In Coolers, Beverage Coolers, Display Cases
General Information
| Item Name | 5.6 Inch Dia Condenser Fan and Direct Drive Blower Motor |
| Series | FA208-230VOV5.6IDCF&DDBM |
Design & Construction
| Bearing Type | Sleeve |
| Rotation | Clockwise Shaft End |
| Enclosure Type | Open |
| Shaft Position | Horizontal |
| Start Method | Permanent Split Capacitor |
Performance Details
| Speed Rating | 1625 rpm |
Electrical Properties
| Full Load Ampere | 2.1 A |
| HP Rating | 0.5 HP |
| Voltage Rating | 230 V |
Physical Properties
| Dimensions | 4.75 Inch L |
| Shaft Length | 8 Inch |
| Frame Size | 48 |
| Shaft Diameter | 0.5 Inch |
Documents
No Documents Found
