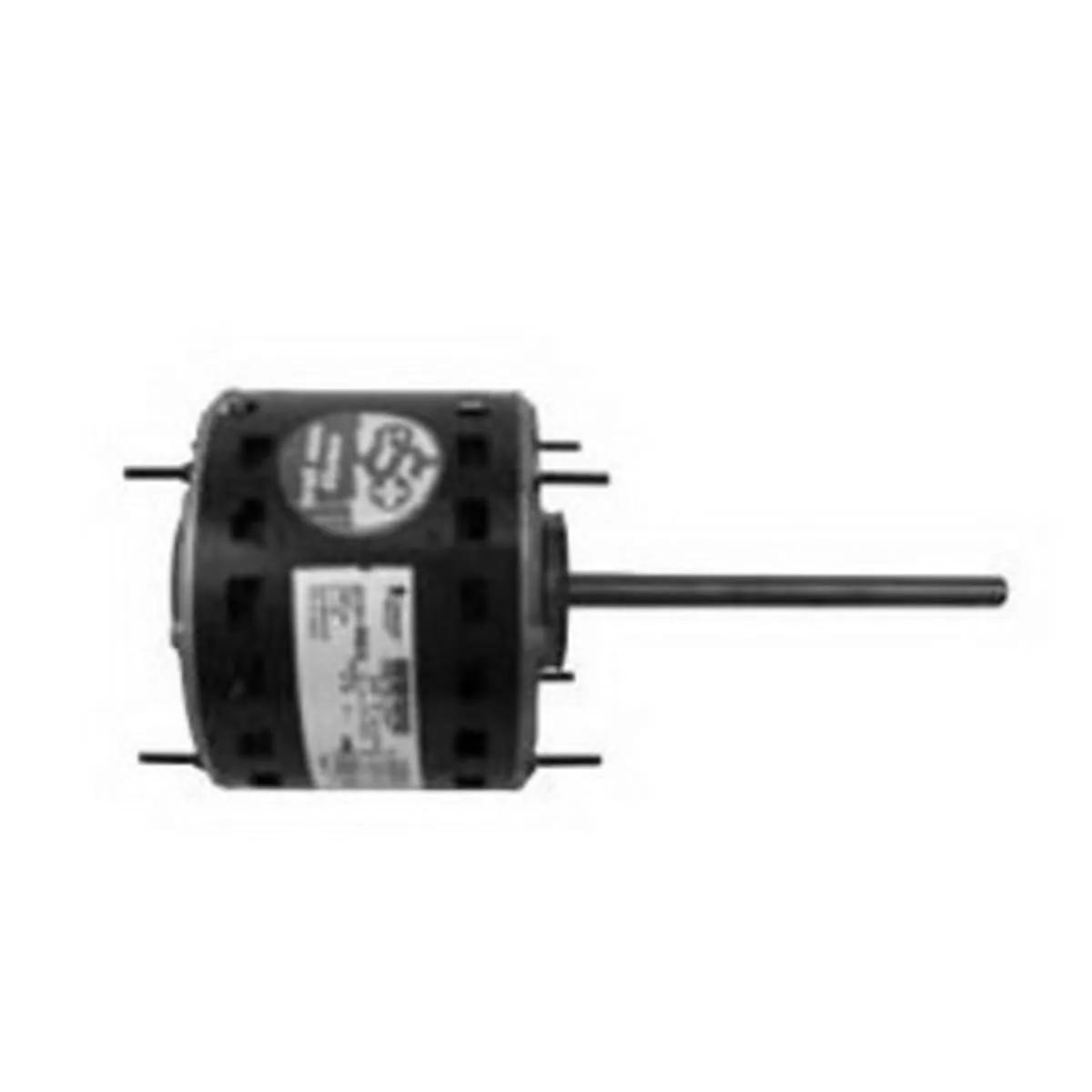

Fasco 208 - 230V Open Vented Airover 5.5 Inch Dia Direct Drive Furnace And Central Air Conditioning Motor, MFR ID FA208-230VOVA5.5IDDDFACACM
- MFR #FA208-230VOVA5.5IDDDFACACM
- EIS #PH23-FA208-230VOVA5.5IDDDFACACM
$219.08 - $587.46
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--Products You May Also Like
| Stock Status | ||||
|---|---|---|---|---|
 | 2 A | 0.25 HP | $ / Piece | |
| 2.7 A | 0.33 HP | $ / Piece | |
| 4.3 A | 0.5 HP | $ / Piece | |
| 2.5 A | 0.33 HP | $ / Piece |
Fasco Cushion Ring Mount 5.5 Inch Dia Direct Drive Furnace And Central Air Conditioning Motor is optimized high efficiency design. All-angle mounting position, reversible rotation with reversing plug. - Fasco 5.5 Inch Dia Direct Drive Furnace and Central Air Conditioning Motor
Features
- 3 speeds
- Voltage Rating: 208 - 230V
Applications
- Designed For Continuous Air Over Applications, Such As Furnace Blowers Or Central Air Handling Units With Single Shaft Requirements
General Information
| Item Name | 5.5 Inch Dia Direct Drive Furnace and Central Air Conditioning Motor |
| Series | FA208-230VOVA5.5IDDDFACACM |
Design & Construction
| Enclosure Type | Open Airover |
| Rotation | Reversible |
| Shaft Position | Horizontal |
| Start Method | Permanent Split Capacitor |
Performance Details
| Speed Rating | 1075 rpm |
Electrical Properties
| Voltage Rating | 230 V |
Documents
No Documents Found
