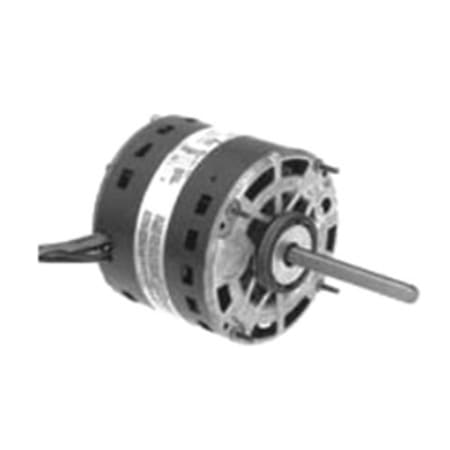

Fasco 3586 5-1/2" Dia Direct Drive Furnace And Central Air Conditioning Motor, 1/3 HP, 1075 rpm
EIS #:MOT3586
EIS #:MOT3586
Out of Stock
Min Qty:1
|Qty Increment:1
$228.27 / Piece
Min Qty:1
|Qty Increment:1
- Attributes
- Features
Attributes
General Information
Item Name5.5 Inch Dia Direct Drive Furnace and Central Air Conditioning Motor
Design & Construction
Bearing TypeSleeve
Electrical Properties
Full Load Ampere2.7 A
HP Rating0.33 HP
Phase1-Phase
Physical Properties
Dimensions9.4 Inch L
Features
- 3 speeds
- Voltage Rating: 208 - 230V
- Mounting holes in shell for capacitor bracket
- Designed for 370V capacitor (not furnished)
- 4 Inch shaft extension
- Extended clamp screws on shaft end with a ring kit provided
- Ring kit allows both 2 1/4 Inch and 2 1/2 Inch resilient ring mounting
- Automatic thermal overload protection
- Energy saver plus design
- 2RR Base
