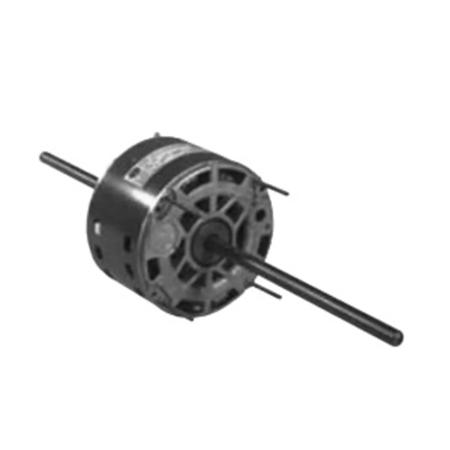

Fasco 115V Open Vented Double Shaft 5.5 Inch Dia Direct Drive Fan And Blower Motor, MFR ID FA115VOVDS5.5IDDDFABM
MFR #:FA115VOVDS5.5IDDDFABM
EIS #:PH23-FA115VOVDS5.5IDDDFABM
MFR #:FA115VOVDS5.5IDDDFABM
EIS #:PH23-FA115VOVDS5.5IDDDFABM
Fasco Double Shaft 5.5 Inch Dia Direct Drive Fan And Blower Motor. - Fasco Double Shaft 5.5 Inch Dia Direct Drive Fan And Blower Motor, Sleeve Bearing, 20 Inch L, Open Enclosure, 48 Frame, 1-Phase, Horizontal Shaft, Start Method: Permanent Split Capacitor, 115V.
$345.65
- $393.34
Select from the options below
Fasco Double Shaft 5.5 Inch Dia Direct Drive Fan And Blower Motor. - Fasco Double Shaft 5.5 Inch Dia Direct Drive Fan And Blower Motor, Sleeve Bearing, 20 Inch L, Open Enclosure, 48 Frame, 1-Phase, Horizontal Shaft, Start Method: Permanent Split Capacitor, 115V.
Product Options
Showing 1 out of 1 options
 | HP Rating: 0.25 HP | Speed Rating: 1625 rpm | EIS Part #: MOT3871 | $ / Piece |
- Attributes
- Features
- Applications
Attributes
General Information
Item Name5.5 Inch Dia Direct Drive Fan and Blower Motor
SeriesFA115VOVDS5.5IDDDFABM
General Features
TypeDouble Shaft
Design & Construction
Bearing TypeSleeve
Enclosure TypeOpen
Shaft PositionHorizontal
Start MethodPermanent Split Capacitor
Electrical Properties
Phase1-Phase
Voltage Rating115 V
Physical Properties
Dimensions20 Inch L
Frame Size48
Features
- 3 speeds
- Multiple mounting capability
- Mounting holes in shell for capacitor bracket
- Designed for 370V capacitor (not furnished)
- Automatic thermal overload protection
- 1RR Base
Applications
- Designed For Continuous Air Over Applications, Such As Room Air Conditioners, Unit Coolers, And Other Air Moving Applications With Double Shaft Requirements
