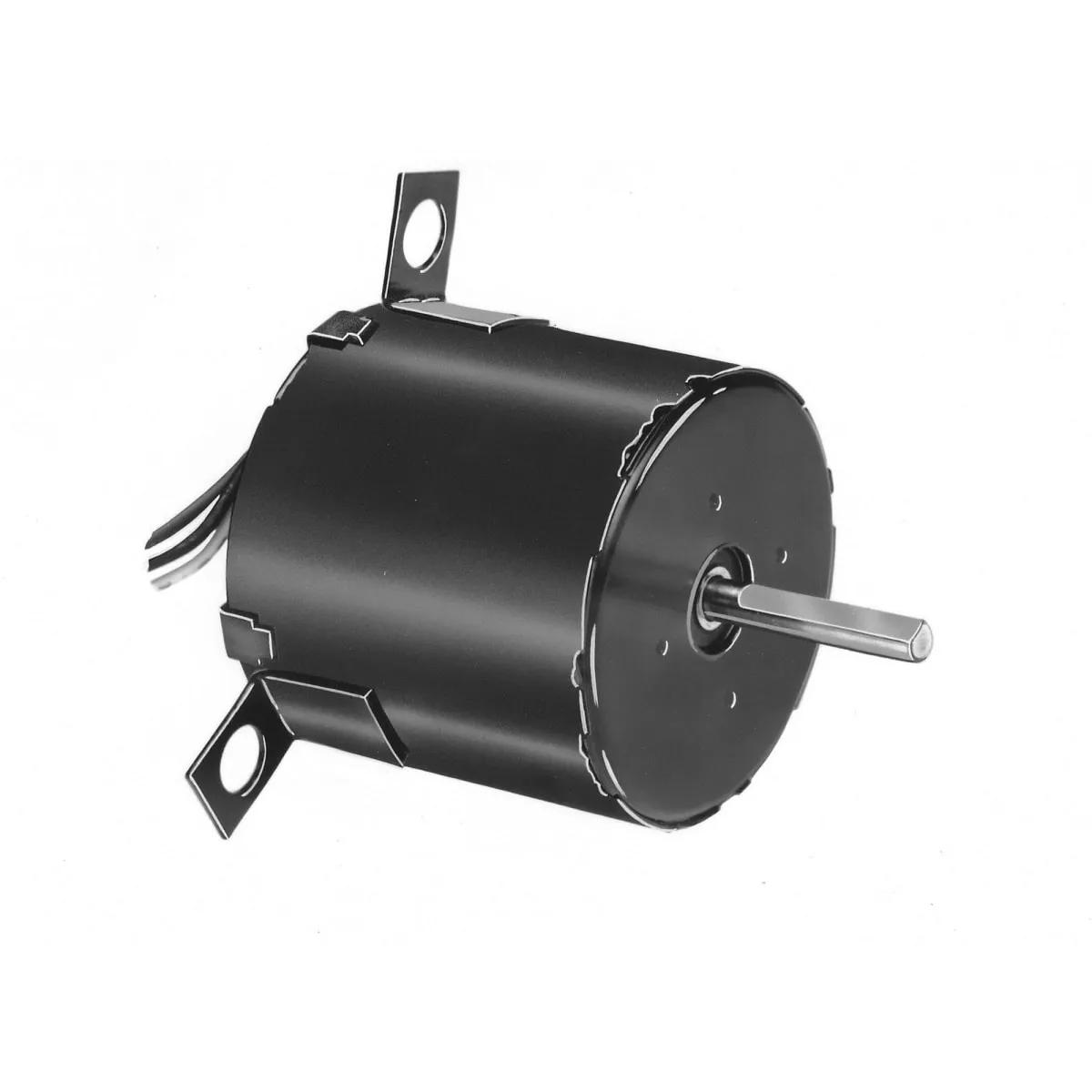

Fasco D1189 3.3" Dia Motor, 1/20 HP, 1550 rpm, Totally Enclosed
- EIS #MOTD1189
$270.11 / Piece
Available to Order
Min QTY1QTY Increment1
more info
Why Buy From EIS?
- Authorized Distributor
- Fast Shipping
- Technical Support Available
Products You May Also Like
Products You May Also Like
Fasco D1189 3.3 Inch Dia Motor. - Fasco D1189 Shaded Pole 3.3 Inch Dia Motor, Ball Bearing, 3.125 Inch L, Totally Enclosed Enclosure, 1.4 - 0.76A Full Load, 1/20 HP, Clockwise Rotation, 0.3125 Inch Shaft Dia, 1.625 Inch Shaft Length, Horizontal Shaft, 1550 rpm, 115/208 - 230V.
Features
- 1 speed
- Full load ampere: 1.4 - 0.76A
- Voltage Rating: 115/208 - 230V
Applications
- For Air Moving - Furnace Fans, Air Handlers, Blowers, Air Conditioners, Exhaust Fans, Commercial Refrigeration - Walk-In Coolers, Beverage Coolers, Display Cases
General Information
| Item Name | 3.3 Inch Dia Motor |
| Series | FA115/208-230VTESP3.3IDM |
General Features
| Type | Shaded Pole |
Design & Construction
| Bearing Type | Ball |
| Enclosure Type | Totally Enclosed |
| Rotation | Clockwise |
| Shaft Position | Horizontal |
Performance Details
| Speed Rating | 1550 rpm |
Electrical Properties
| Full Load Ampere | 1.4 A |
| HP Rating | 0.05 HP |
| Voltage Rating | 230 V |
Physical Properties
| Dimensions | 3.125 Inch L |
| Shaft Diameter | 0.3125 Inch |
| Shaft Length | 1.625 Inch |
