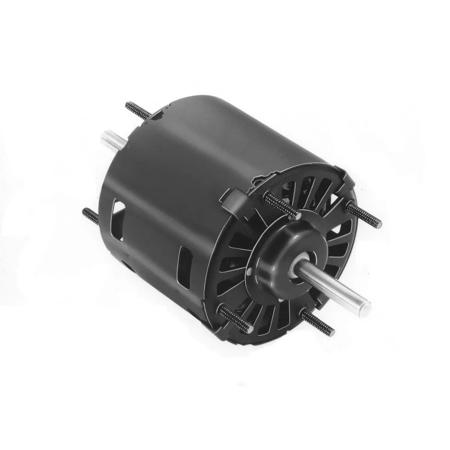

Fasco D365 3.3" Dia General Purpose Motor, 1/25 HP, 1500 rpm, Open Ventilated
- MFR #D365
- EIS #MOTD365
$215.11 / Piece
Available to Order
Min QTY1QTY Increment1more info
Fasco 115V Open Vented 1-Speed Dual Shaft Shaded Pole 3.3 Inch Dia General Purpose Motor with Hubs - Fasco 115V Open Vented 1-Speed Dual Shaft Shaded Pole 3.3 Inch Dia General Purpose Motor with Hubs
Features
- 1 speed
Applications
- For Air Moving - Furnace Fans, Air Handlers, Blowers, Air Conditioners, Exhaust Fans, Commercial Refrigeration - Walk-In Coolers, Beverage Coolers, Display Cases
General Information
| Item Name | 3.3 Inch Dia General Purpose Motor |
| Series | FA115VOV1-SDSSP3.3IDGPMH |
General Features
| Type | Shaded Pole |
Design & Construction
| Bearing Type | Sleeve |
| Enclosure Type | Open |
| Rotation | Clockwise Shaft End |
| Shaft Position | Horizontal |
Performance Details
| Speed Rating | 1500 rpm |
Electrical Properties
| Frequency Rating | 60 Hz |
| Full Load Ampere | 1.8 A |
| HP Rating | 0.04 HP |
| Voltage Rating | 115 V |
Physical Properties
| Dimensions | 2.875 Inch L |
| Shaft Diameter | 0.3125 Inch |
| Shaft Length | 1.875 Inch |
