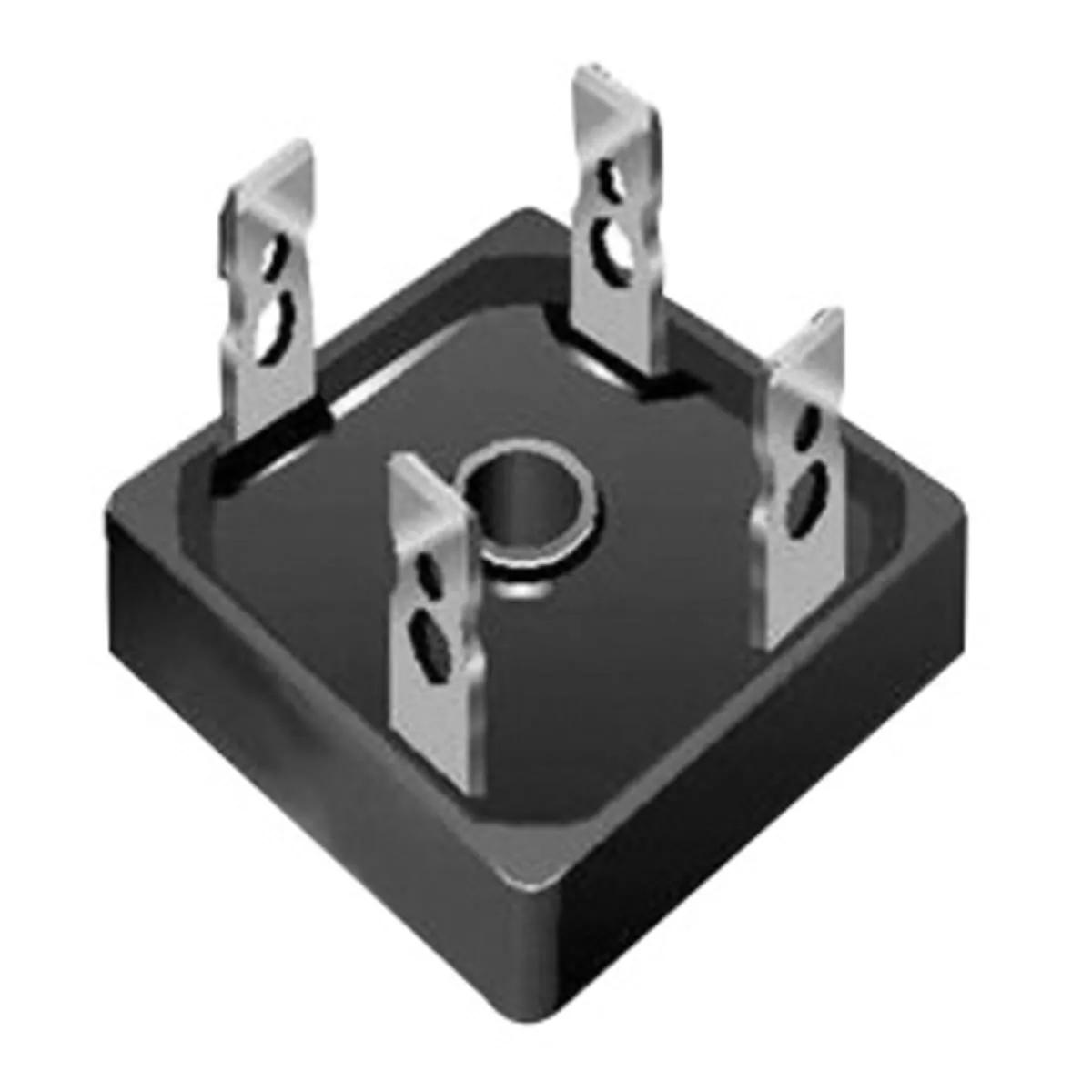

C and H Technology 36MB 1-Phase Bridge Power Module, 35A, 1200V RRM, Stud Mount, MFR ID 36MB120A
- MFR #36MB120A
- EIS #1-1235
- Series #C&H-1PH-BPM
$15.33 / each
In Stock | Ready to Ship
Min QTY1QTY Increment1
more info
1-Phase Bridge Power Module is a range of extremely compact, encapsulated three phase bridge rectifiers offering efficient and reliable operation. They are intended for use in general purpose and instrumentation applications. Designed and qualified for industrial level, nickel plated terminals solderable using lead-free solder. - High thermal conductivity package, electrically insulated case. Universal, push-on, wrap around or solder 3 way terminals Center hole fixing, Excellent power/volume ratio. Maximum instantaneous forward voltage drop per leg 1.14 V (VF), 10 mA maximum reverse DC current.
Features
- Center hole fixing
- Nickel plated terminals solderable using lead-free solder
- Excellent power/volume ratio
- Designed and qualified for industrial level
- Maximum instantaneous forward voltage drop per leg 1.14 V (VF), 10 mA maximum reverse DC current
- 1030 - 1130A2S (I2t ) Rating for fusing, IFSM: 475 - 500A, typical thermal resistance per leg : 1.2 RthJC
- 2 Nm mounting torque
- 1200 VRRM maximum repetitive peak reverse voltage, 1300 VRMS maximum root mean square voltage
- Input Voltage: 1200V RRM
- Temperature Rating: -55 to 150 °C
Applications
- For Welding Power Supplies, Battery Charger, SMPS, UPS, Motor Drives
General Information
| Item Name | 1-Phase Bridge Power Module |
| Series | C&H-1PH-BPM |
General Features
| Standards | UL File No E300359 Listed, RoHS Compliant |
Design & Construction
| Mounting Type | Stud |
Electrical Properties
| Amperage Rating | 35 A |
| Input Voltage | 1200 V |
Physical Properties
| Dimensions | 28.5 mm W x 20.3 mm D x 28.5 mm H |
Environmental Condition
| Temperature Rating | 150 °C |
