Dow Corning 1-4173 One-Part Thermally Conductive Adhesive

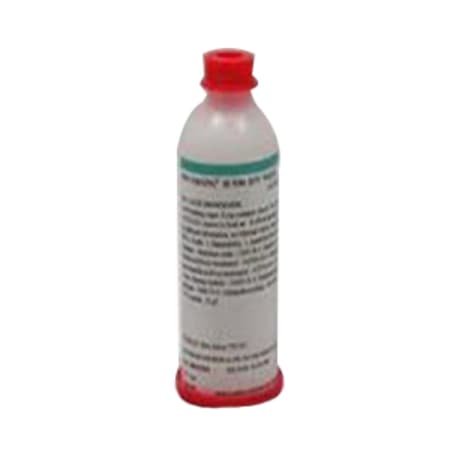

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:1-4173

EIS #:PH11-1-4173

Series #:1-4173

MFR #:1-4173

EIS #:PH11-1-4173

Series #:1-4173

0
0
Dow Corning 1-4173 heat-cure, thermally conductive adhesives produce no by-products in the cure process, allowing their use in deep section and complete confinement. These adhesives will develop good, primerless adhesion to a variety of common substrates including metals, ceramics, epoxy laminate boards, reactive materials and filled plastics. - Long-term, reliable protection of sensitive circuits and components is important in many of today's delicate and demanding electronic applications. With the increase in processing power and the trend toward smaller, more compact electronic modules, the need for thermal management is growing.
$82.60
 - $539.07
Select from the options below
0
0
Dow Corning 1-4173 heat-cure, thermally conductive adhesives produce no by-products in the cure process, allowing their use in deep section and complete confinement. These adhesives will develop good, primerless adhesion to a variety of common substrates including metals, ceramics, epoxy laminate boards, reactive materials and filled plastics. - Long-term, reliable protection of sensitive circuits and components is important in many of today's delicate and demanding electronic applications. With the increase in processing power and the trend toward smaller, more compact electronic modules, the need for thermal management is growing.

Product Options

Showing 2 out of 2 options
The image shown is representative of the product family and may not specifically be the individual item.
Container Size
30mL
EIS Part #
DC1-4173X30ML
$ / Cartridge
The image shown is representative of the product family and may not specifically be the individual item.
Container Size
1.5kg
EIS Part #
DC1-4173X1.5KG
$ / Cartridge

Attributes

General Information
Item NameThermally Conductive Adhesive
Series1-4173
General Features
TypeOne-Part
StandardsUL Listed, WEEE/RoHS Compliant
Storage Temperature16 to 27 °C
Shelf Life6 Months
Design & Construction
ColorGray
Coverage40 sq-ft at 2.5g
FormLiquid
Cure TypeHeat Cure
Performance Details
Application Time30 sec - 15 min
Flame RetardantYes
Full Cure Time90 min at 100 °C
Shear Strength650 psi
Tensile Strength900 psi
Chemical Properties
CompositionSilicone Elastomer
Specific Gravity2.7
Viscosity61000 cP
Electrical Properties
Dielectric Strength16.7kV/mm
UL RatingUL94 V-0
Physical Properties
Elongation20%
Hardness92 Shore A
Container TypeCartridge
Odor/ScentSlight
Supporting Information
Applicable MaterialsCeramics, Plastics
