Craig Wire Quad Build Rectangular Magnet Wire

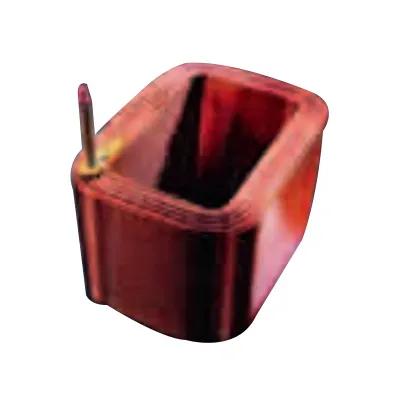

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:SRQQPAM

EIS #:PH15-SRQQPAM

Series #:SRQQPAM

MFR #:SRQQPAM

EIS #:PH15-SRQQPAM

Series #:SRQQPAM

0
0
Rectangular quad build have different types of enamel with very good mechanical strength and bonding properties. Very consistent quality and dimension tolerances in line with industry standards. Wide range of dimensions, yarns and insulation builds available. Very thin grades for wind turbine generators. Improved mechanical strength, high-performance yarns and impregnation varnishes. - Rectangular quad build has a very high resistance to corona discharges for inverter applications. Soft wire for easy winding. Excellent thermal and chemical properties. Suitable for windings that are subjected to constantly high temperatures and mechanical stress.
$230.72
 - $348.14
Select from the options below
0
0
Rectangular quad build have different types of enamel with very good mechanical strength and bonding properties. Very consistent quality and dimension tolerances in line with industry standards. Wide range of dimensions, yarns and insulation builds available. Very thin grades for wind turbine generators. Improved mechanical strength, high-performance yarns and impregnation varnishes. - Rectangular quad build has a very high resistance to corona discharges for inverter applications. Soft wire for easy winding. Excellent thermal and chemical properties. Suitable for windings that are subjected to constantly high temperatures and mechanical stress.

Product Options

Showing 7 out of 7 options
Wire Size
0.182 Inch x 0.229 Inch
EIS Part #
SW182X229HPQJC
$ / US pound
Wire Size
0.162 Inch x 0.325 Inch
EIS Part #
SW162X325QPJC
$ / US pound
Wire Size
0.144 Inch x 0.325 Inch
EIS Part #
SW144X325HPQJC
$ / US pound
Wire Size
0.114 Inch x 0.365 Inch
EIS Part #
SW114X365HPQJC
$ / US pound
Wire Size
0.114 Inch x 0.325 Inch
EIS Part #
SW114X325HPQJC
$ / US pound
Wire Size
0.102 Inch x 0.365 Inch
EIS Part #
SW102X365HPQJC
$ / US pound
Wire Size
0.102 Inch x 0.325 Inch
EIS Part #
SW102X325HPQJC
$ / US pound

Attributes

General Information
Item NameMagnet Wire
SeriesSRQQPAM
General Features
TypeQuad Build
Design & Construction
MaterialCopper
Insulation MaterialModified Polyamide with Polyamide-imide Overcoat
ShapeRectangular
NEMA RatingMW 36-C
