3M CeQuin™ IF 2-Ply Inorganic Insulating Paper Roll

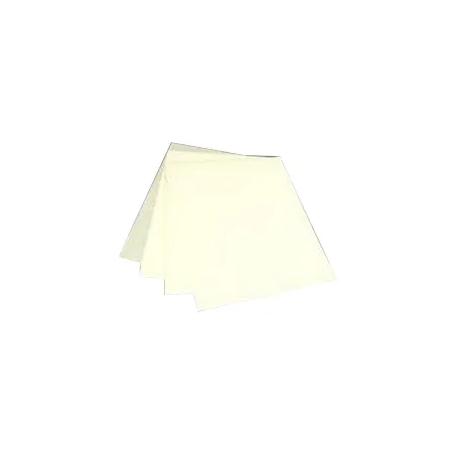

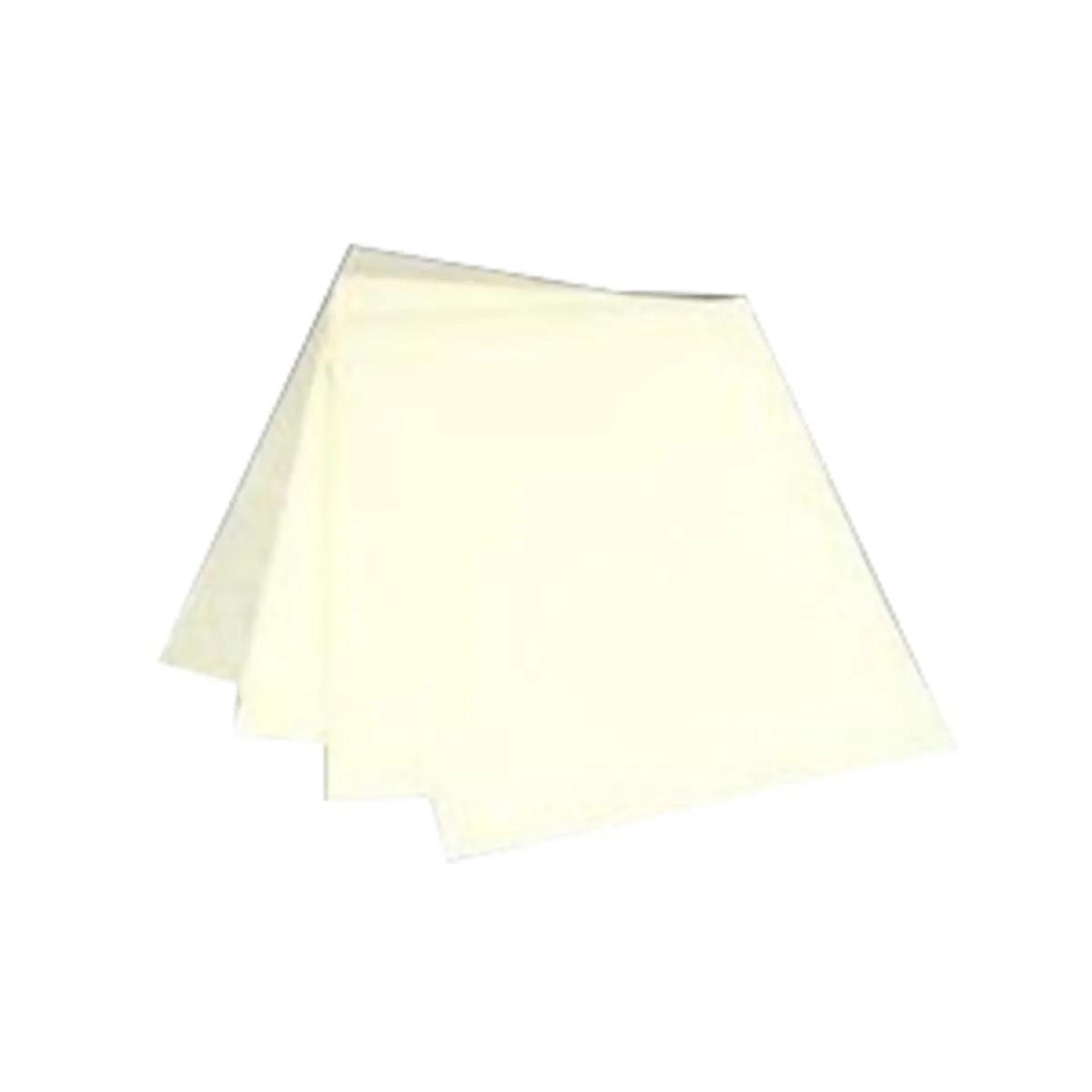

The image shown is representative of the product family and may not specifically be the individual item.  3M™ CeQUIN™ 30F Inorganic Insulating Paper Laminate is designed for insulating and protecting electrical equipment at high temperatures. The polye…

MFR #:CeQuin™ IF

EIS #:PH21-CeQuin IF

Series #:CeQuin™ IF

MFR #:CeQuin™ IF

EIS #:PH21-CeQuin IF

Series #:CeQuin™ IF

0
0
3M™ CeQUIN™ IFI Inorganic Insulating Paper Laminate is a two-ply composite of CeQUIN Inorganic Insulating Paper I bonded to polyester (PET) film for use in high-temperature electrical insulating applications. Qualified for use in electrical insulation systems up to Class 220® per UL 1446 and IEC Std. 60085. Applications include ground and layer insulation in dry-type transformers, as well as interwinding insulation in strip-wound coils, and wire-wrap for UL Recognized Class 250 °C appliance wires. CeQUIN IF laminates are compatible with commonly used impregnating varnishes and resins, and are easily impregnated, further enhancing thermal conductivity and coil bonding characteristics. - 3M™ CeQUIN IF laminates offer the high-performance characteristics of 3M™ CeQUIN I Inorganic Insulating Paper, including excellent thermal and dielectric stability, high thermal conductivity, long-term voltage endurance, and low moisture absorption, the polyester film reinforcement provides higher mechanical strength and improved cut through resistance and resistance to tear initiation for ease of handling in manufacturing operations.
$11.96
 - $15.19
Select from the options below
0
0
3M™ CeQUIN™ IFI Inorganic Insulating Paper Laminate is a two-ply composite of CeQUIN Inorganic Insulating Paper I bonded to polyester (PET) film for use in high-temperature electrical insulating applications. Qualified for use in electrical insulation systems up to Class 220® per UL 1446 and IEC Std. 60085. Applications include ground and layer insulation in dry-type transformers, as well as interwinding insulation in strip-wound coils, and wire-wrap for UL Recognized Class 250 °C appliance wires. CeQUIN IF laminates are compatible with commonly used impregnating varnishes and resins, and are easily impregnated, further enhancing thermal conductivity and coil bonding characteristics. - 3M™ CeQUIN IF laminates offer the high-performance characteristics of 3M™ CeQUIN I Inorganic Insulating Paper, including excellent thermal and dielectric stability, high thermal conductivity, long-term voltage endurance, and low moisture absorption, the polyester film reinforcement provides higher mechanical strength and improved cut through resistance and resistance to tear initiation for ease of handling in manufacturing operations.

Product Options

Showing 6 out of 6 options
Length
750 Yard
Thickness
12 mil
Width
36 Inch
EIS Part #
QM1022M
$ / Square YD
Length
325 Yard
Thickness
10 mil
Width
37 Inch
EIS Part #
CEQUINIF7-31M
$ / Square YD
Length
1200 Yard
Thickness
7 mil
Width
36 Inch
EIS Part #
CEQUINIF523M
$ / Square YD
The image shown is representative of the product family and may not specifically be the individual item.  3M™ CeQUIN™ 3000 Inorganic Insulating Paper provides high thermal conductivity, low moisture absorption and long-term dielectric strength. This pa…
Length
465 Yard
Thickness
7 mil
Width
36 Inch
EIS Part #
CEQUINIF522M
$ / Square YD
The image shown is representative of the product family and may not specifically be the individual item.  3M™ CeQUIN™ 3000 Inorganic Insulating Paper provides high thermal conductivity, low moisture absorption and long-term dielectric strength. This pa…
Length
270 Yard
Thickness
12 mil
Width
36 Inch
EIS Part #
CEQUINIF102M
$ / Square YD
The image shown is representative of the product family and may not specifically be the individual item.  3M™ CeQUIN™ 3000 Inorganic Insulating Paper provides high thermal conductivity, low moisture absorption and long-term dielectric strength. This pa…
Length
500 Yard
Thickness
11 mil
Width
37 Inch
EIS Part #
CEQUINIF10-1E
$ / Square YD

Attributes

General Information
Item NameInorganic Insulating Paper Roll
Trade NameCeQuin™ IF
SeriesCeQuin™ IF
General Features
Type2-Ply
Design & Construction
Insulation TypeClass R
Performance Details
Moisture Absorption<1%
Tensile Strength7 kN/M
Electrical Properties
Dielectric Strength5 kV
