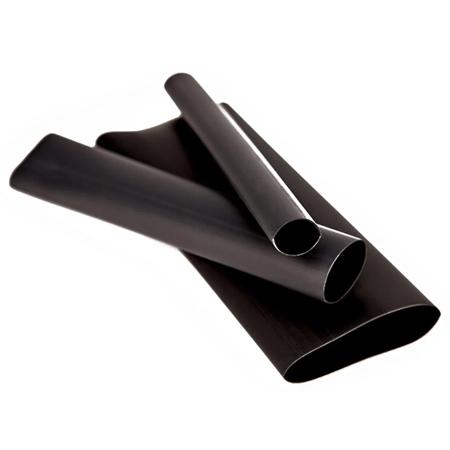

3M EPS-200 2:1 Adhesive-Lined Heat Shrink Tubing
- MFR #:EPS-200
- EIS #:PH21-EPS-200
- Series #:EPS-200
- MFR #:EPS-200
- EIS #:PH21-EPS-200
- Series #:EPS-200
3M™ Heat Shrink Tubing EPS-200 is a 2:1 thin-wall tubing offering the advantages of integral adhesive-lined construction. The tubing is made from a flame-retardant, flexible polyolefin with a thin layer of special thermoplastic adhesive. - The heat-shrinkable outer wall is selectively cross-linked while maintaining the high flow and excellent adhesion of the inner sealant liner.
$15.44
- $527.88
Select from the options below
3M™ Heat Shrink Tubing EPS-200 is a 2:1 thin-wall tubing offering the advantages of integral adhesive-lined construction. The tubing is made from a flame-retardant, flexible polyolefin with a thin layer of special thermoplastic adhesive. - The heat-shrinkable outer wall is selectively cross-linked while maintaining the high flow and excellent adhesion of the inner sealant liner.
Product Options
Showing 7 out of 7 options
 | Length: 4 ft | Expandable Diameter: 2 Inch | Color: Black | EIS Part #: EPS2002.000 | $ / Foot | |
| Length: 20 ft | Expandable Diameter: 0.75 Inch | Color: Black | EIS Part #: EPS200.75SB | $ / Box | |
 | Length: 4 ft | Expandable Diameter: 0.75 Inch | Color: Black | EIS Part #: EPS200.75 | $ / Foot | |
| Length: 4 ft | Expandable Diameter: 0.5 Inch | Color: Black | EIS Part #: EPS200.5 | $ / Foot | |
| Length: 48 ft | Expandable Diameter: 0.375 Inch | Color: Black | EIS Part #: EPS200.375A | $ / Box | |
| Length: 4 ft | Expandable Diameter: 0.375 Inch | Color: Black | EIS Part #: EPS200.375 | $ / Foot | |
| Length: 4 ft | Expandable Diameter: 0.125 Inch | Color: Black | EIS Part #: EPS200.125 | $ / Foot |
- Attributes
- Features
- Applications
Attributes
General Information
Item NameHeat Shrink Tubing
SeriesEPS-200
General Features
TypeAdhesive-Lined
Shelf Life120 Months
Design & Construction
Insulation MaterialFlexible Polyolefin
Minimum Shrink Temperature121 °C
Wall TypeDual-Thin
Performance Details
Heat Aging168 hr
Heat Shock4 hr
Low Temperature Flexibility55 °C
Shrink Ratio2:1
Tensile Strength2100 psi
Chemical Properties
Specific Gravity1.3
Electrical Properties
Dielectric Strength800 V/mil
Voltage Rating600 V
Physical Properties
Elongation450%
Water Absorption0.3%
Environmental Condition
Reflow Temperature80 °C
Features
- When heated in excess of 121 °C (250 °F), EPS-200 tubing rapidly shrinks to a skintight fit, forcing the melted adhesive lining to flow and cover the substrate
- The adhesive forms a flexible bond with a wide variety of rubbers, plastics and metals
- Upon cooling, the adhesive solidifies forming a durable, non-drying, flexible and water resistant barrier
- When freely recovered, the tubing will shrink to 50% of its original diameter
- The recovered wall thickness of the tubing is proportional to the degree of recovery
- Non-corrosive chemical effect
- Non-nutrient fungus resistance
- Excellent fluid resistance
- Dual-wall construction provides abrasion resistance and moisture-seal protection
- Self-extinguishing
- No dripping, flowing or cracking (4 hr at 225 °C) of heat shock
- Low Temperature Flexibility: -55 °C
- Temperature Rating: -55 to 110 °C
Applications
- Offers Convenient Protection for Electronic Components, Wire Splices, Wire Bundles and Harness Breakouts
- Automotive, Truck and Marine Wiring Splices and Harness Breakouts are Quickly and Easily Protected from Harsh Environments
