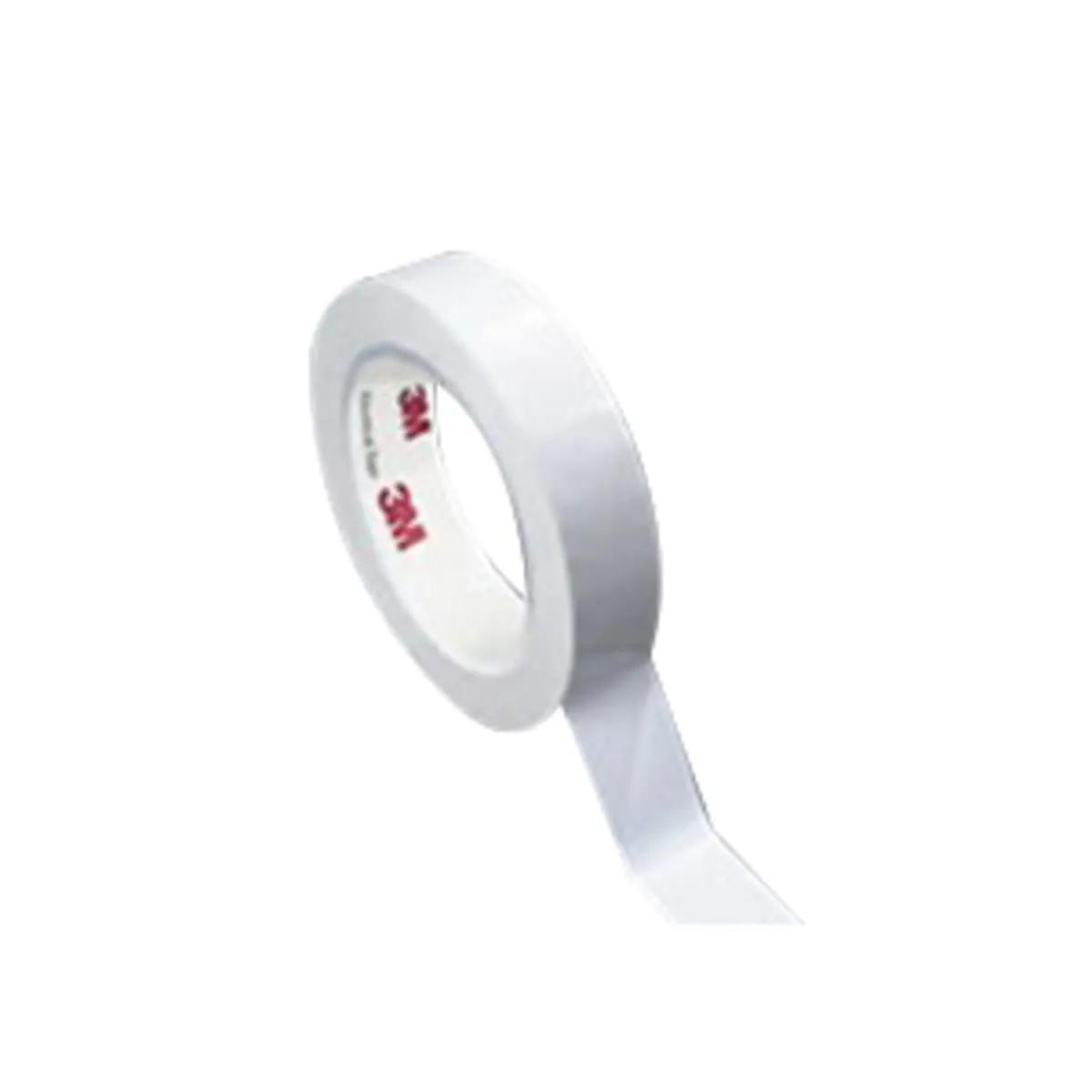

3M 1351-1 Polyester Electrical Tape
- MFR #1351-1
- EIS #PH22-1351-1
$5.92 - $53.02
Refine your product below or compare all choices in the
Min QTY1QTY Increment1more infoPack--
| Stock Status | |||
|---|---|---|---|
 | 0.343 Inch | $ / Roll | |
| 0.375 Inch | $ / Roll | |
| 0.437 Inch | $ / Roll | |
| 0.4 Inch | $ / Roll | |
| 0.65 Inch | $ / Roll | |
| 0.687 Inch | $ / Roll |
3M 1351-1 tape is an electrical insulating polyester film tape, which meets the flame-retardancy requirements of UL 510. It consists of materials that are represented in many UL recognized insulation systems and has a UL 130 °C temperature rating. - It also offers excellent flagging and solvent resistance, good wet grab, smooth, even unwind and is suitable for use on automated equipment.
Features
- Excellent flagging resistance
- Controlled release
- Solvent resistant without thermosetting
- Excellent shelf life
Applications
- For Wrapping Coils, Capacitors, Wire Harnesses, Transformers, Shaded Pole Motors and Fractional Horsepower Motors
General Information
| Item Name | Electrical Tape |
| Trade Name | 3M |
| Series | 1351-1 |
Design & Construction
| Adhesive Type | Acrylic |
| Backing Material | Polyester |
| Color | White |
Performance Details
| Adhesive Strength | 30 oz/Inch |
| Breaking Strength | 25 lb/Inch |
| Flame Retardant | Yes |
Electrical Properties
| Dielectric Strength | 5500 V |
Physical Properties
| Core Size | 3 Inch |
| Elongation | 100% |
| Length | 72 Yard |
| Thickness | 2.5 mil |
| Width | - |
Environmental Condition
| Resists | Flagging, Solvent |
| Temperature Rating | 130 °C |
