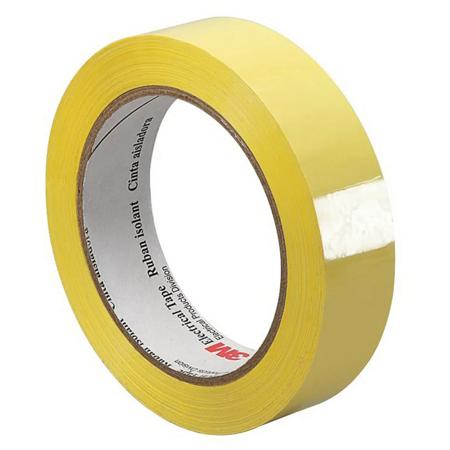

3M 1318 Polyester Electrical Tape
- MFR #1318
- EIS #PH22-1318
$5.68 - $83.39
Refine your product below or compare all choices in the
Min QTY1QTY Increment1more infoPack--
| Stock Status | ||||
|---|---|---|---|---|
 | 0.125 Inch | Black | $ / Roll | |
| 0.125 Inch | Yellow | $ / Roll | |
| 0.156 Inch | Yellow | $ / Roll | |
| 0.1875 Inch | Yellow | $ / Roll | |
 | 0.1875 Inch | Black | $ / Roll | |
| 0.25 Inch | Yellow | $ / Roll |
3M 1318 tape is a polyester film tape with acrylic pressure sensitive adhesive. It has excellent flagging resistance and solvent resistance, making it well suited for applications where cleaning solvents and mineral oil are present. - It consists of materials that are represented in many UL recognized insulation systems and has a UL 130 °C temperature rating. It offers good wet grab, excellent shelf life, smooth, even unwind and is suitable for printing and use on automated equipment.
Features
- Excellent flagging resistance
- Printable
- Solvent resistant without thermosetting
- Excellent shelf life
Applications
- For Wrapping Coils, Capacitors, Wire Harnesses, Transformers, Shaded Pole Motors and Fractional Horsepower Motors
General Information
| Item Name | Electrical Tape |
| Trade Name | 3M |
| Series | 1318 |
Design & Construction
| Adhesive Type | Acrylic |
| Backing Material | Polyester |
| Color | Yellow |
Performance Details
| Adhesive Strength | 30 oz/Inch |
| Breaking Strength | 25 lb/Inch |
Electrical Properties
| Dielectric Strength | 5500 V |
Physical Properties
| Core Size | 3 Inch |
| Elongation | 100% |
| Length | 72 Yard |
| Thickness | 2.5 mil |
| Width | - |
Environmental Condition
| Resists | Flagging, Solvent |
| Temperature Rating | 130 °C |
