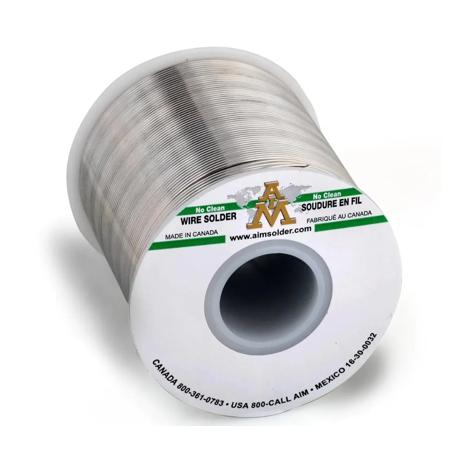

AIM Solder 13426 Glowcore No Clean Cored Wire Solder SN63 2%, 0.032 inch diameter, 1 lb spool
- MFR #13426
- EIS #13426-AIM
$51.47 / US pound
Available to Order
Min QTY1QTY Increment1more info
Glow Core is a no-clean cored wire solder designed to offer excellent wetting characteristics with both leaded and leadfree alloys. The novel activator in Glow Core produces fast cycle time and powerful capillary action. Glow Core promotes thermal transfer, offering better solder penetration into plated through holes or surface mount interconnections. Glow Core cored wire produces low-to-medium post-process residues that are electrically safe that do not require cleaning.
Features
- Fast Wetting with Pb-Free Alloys
- Pleasant Odor
- Clear Residue
- Extends Solder Tip Life
- ROL0 per IPC J-Std-004
- REACH and RoHS Compliant
- Passes BONO Testing
Applications
- Better solder penetration for PTH and SMT interconnections
- ROL0 flux classification acceptable for use in automotive, medical, and military applications
- Extended tip life: flux formulation designed to minimize corrosion of soldering iron tip
General Information
| Trade Name | AIM Solder |
General Features
| Net Weight | 1 lb |
| Shelf Life | 7 years |
| Storage Temperature | Room Temperature |
Design & Construction
| Form | Solid |
Performance Details
| Conductivity | High |
Chemical Properties
| Lead Free | No |
Physical Properties
| Container Type | Spool |
| Wire Diameter | 0.032 Inch |
Environmental Condition
| Melting Range | 185 C to 302 C |
Supporting Information
| RoHS Info | RoHS Compliant |
| Use With | Manual soldering, surface mount, and through-hole applications |
