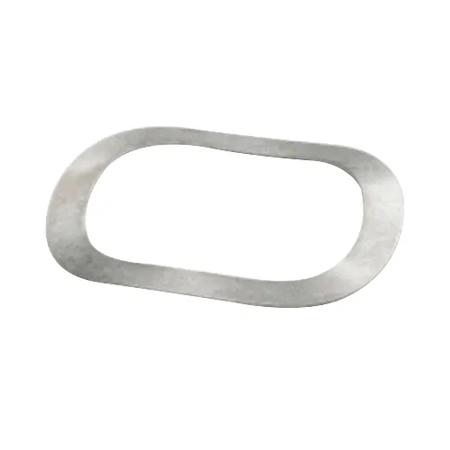

Associated Spring Raymond W6945-063 Heavy 3 Wave Spring Washer, 5.408" ID x 6.945" OD x 0.063" T, High Carbon Steel
- MFR #:W6945-063
- EIS #:DSX1149
- MFR #:W6945-063
- EIS #:DSX1149
In Stock | Ready to Ship
Min Qty:1
|Qty Increment:1
Associated Spring Raymond W-0 Heavy Series Heavy 3 Wave Spring Washer, High Carbon Steel, Material Specification: C1074 ASTM-A684. - Associated Spring Raymond Heavy 3 Wave Spring Washer.
Requires Quote / Piece
Min Qty:1
|Qty Increment:1
Associated Spring Raymond W-0 Heavy Series Heavy 3 Wave Spring Washer, High Carbon Steel, Material Specification: C1074 ASTM-A684. - Associated Spring Raymond Heavy 3 Wave Spring Washer.
- Attributes
- Features
Attributes
General Information
Item Name3 Wave Spring Washer
SeriesW-0 Heavy
General Features
TypeHeavy
Design & Construction
Grade1074
MaterialHigh Carbon Steel
Material SpecificationC1074 ASTM-A684
Performance Details
Load Rating333 lb
Physical Properties
Inside Diameter5.408 Inch
Outside Diameter6.945 Inch
Thickness0.063 Inch
Supporting Information
For Use With6220/6317 Bearing
Features
- Normally used in thrust-loading applications for small deflections, particularly where radial space is limited, a typical example is the axial loading of ball bearings
- Triple wave washers have a greater load-bearing capacity than single wave washers but have a smaller diameter
- High carbon steel (HCS) is harder than plain carbon steel and has a high tensile strength
- It is commonly used on wood, ferrous and non-ferrous metals
- 0.538 Inch free height
- 0.253 Inch load height
- Load Rating: 231 - 333 lb
